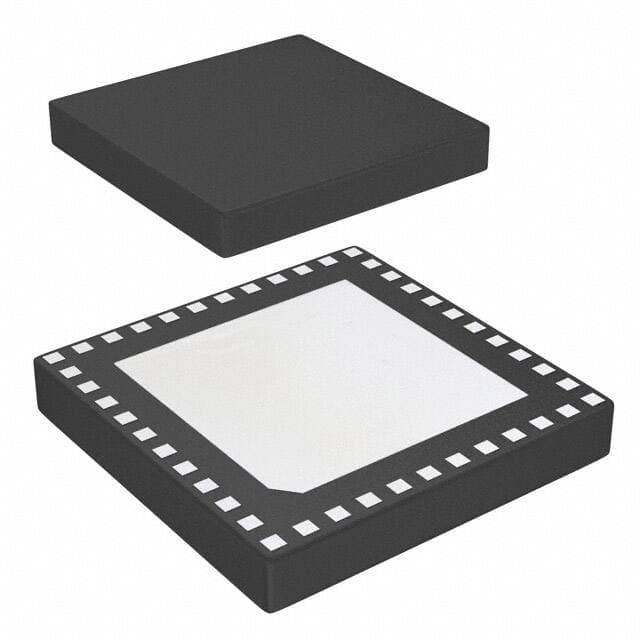

Microchip PIC32MX270F256D-I/TL

Manufacturer No:

PIC32MX270F256D-I/TL

Manufacturer:

Microchip

Package:

44-VFTLA Exposed Pad

Description:

256KB 256K x 8 FLASH MIPS32® M4K? 32-Bit Microcontroller PIC® 32MX Series PIC32MX270F256D 44 Pin 40MHz 3.3V 44-VFTLA Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC32MX270F256D-I/TL information

Microchip PIC32MX270F256D-I/TL technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MX270F256D-I/TL.

Type
Parameter

Factory Lead Time
18 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
44-VFTLA Exposed Pad

Number of Pins
44

Operating Temperature
-40°C~85°C TA

Packaging
Tube

Series
PIC® 32MX

Published
2012

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BUTT

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
3.3V

Frequency
40MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
PIC32MX270F256D

Supply Voltage-Max (Vsup)
3.6V

Interface
I2C, I2S, IrDA, LIN, SPI, UART, USART, USB

Oscillator Type
Internal

Number of I/O
33

RAM Size
64K x 8

Voltage - Supply (Vcc/Vdd)
2.3V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
MIPS32® M4K?

Peripherals
Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
256KB 256K x 8

Connectivity
I2C, IrDA, LINbus, SPI, UART/USART, USB OTG

Bit Size
32

Data Converter
A/D 13x10b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

Number of Timers/Counters
5

Core Architecture
PIC

Number of Programmable I/O
34

Number of ADC Channels
13

Number of I2C Channels
2

Download datasheets and manufacturer documentation for Microchip PIC32MX270F256D-I/TL.

PIC32MX270F256D-I/TL Overview

There is a 44-VFTLA Exposed Pad package available. The board has 33 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. PIC® 32MX-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 256KB 256K x 8. Powered by a MIPS32® M4K? Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 44. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of YES DMA channels are available. This IC part has a memory size of 256kB. There are a number of alternatives to the base part number PIC32MX270F256D that you can find. Performing well when operated at frequency 40MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 44 pins that can be accessed. It comes with 5 timers/counters that can be set up. The CPU is based on PIC cores. There are 34 Programmable I/Os on this computer. The device has a total of 13 ADC channels in total. A total of 2 I2C channels have been integrated into the part.

PIC32MX270F256D-I/TL Features

44-VFTLA Exposed Pad package
Mounting type of Surface Mount

PIC32MX270F256D-I/TL Applications

There are a lot of Microchip Technology
PIC32MX270F256D-I/TL Microcontroller applications.

Toys
Robots
Radio
Television
Heater/Fan
Calculator
Kindle
Christmas lights
3D printers
Washing machine
