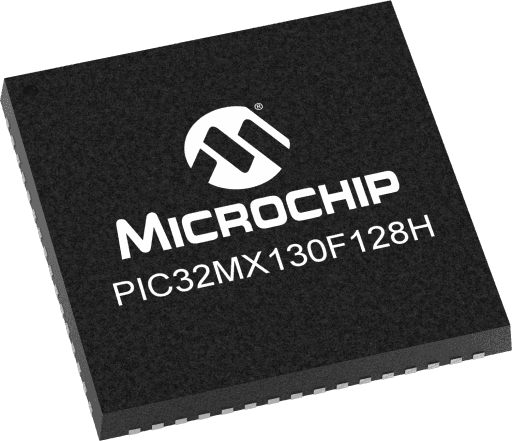

Microchip PIC32MX130F128H-I/PT
Microchip PIC32MX130F128H-I/PTMicrochip PIC32MX130F128H-I/PT

Microchip PIC32MX130F128H-I/PT

Manufacturer No:

PIC32MX130F128H-I/PT

Manufacturer:

Microchip

Package:

64-TQFP

Description:

32 Bit MCU, 128KB Flash, 16KB RAM, 50 MHz, 64 Pin, 3 Comp, USB, RTCC

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

PIC32MX130F128H-I/PT Information

Microchip PIC32MX130F128H-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MX130F128H-I/PT.

  • Type
  • Parameter
  • Part Family
  • PIC32MX1xx
  • CPU Type
  • 32-bit MIPS MCU
  • MaxSpeed (MHz)
  • 50
  • Program Memory Size (KB)
  • 128
  • SRAM (KB)
  • 16
  • Temp. Range Min.
  • -40
  • Temp. Range Max.
  • 105
  • Operation Voltage Min.(V)
  • 2.3
  • Operation Voltage Max.(V)
  • 3.6
  • SPI
  • 3
  • Type
  • Parameter
  • I2C
  • 2
  • UART
  • 4
  • QSPI
  • 0
  • Crypto Engine
  • No
  • Internal Oscillator
  • 8 MHz, 32 kHz
  • Pin Count
  • 64

Download datasheets and manufacturer documentation for Microchip PIC32MX130F128H-I/PT.

Legacy Collaterals:

Data Sheets:

Tech Brief:

Reference Manual:

Programming Specifications:

Brochures:

Errata:

Code Examples:

Application Notes:

  • Up to 50 MHz/83 DMIPS, MIPS32® M4K® core
  • Two I2S and four SPI modules for Codec and serial communications
  • Peripheral Pin Select (PPS) functionality
  • Parallel Master Port (PMP) with dual read/write buffers for graphics interfaces
  • Temperature Range - 40°C to 105°C




  • Up to 50 MHz/83 DMIPS, MIPS32® M4K® core
  • Three I2S/SPI modules for Codec and serial communications
  • Peripheral Pin Select (PPS) functionality
  • Parallel Master Port (PMP) with dual read/write buffers for graphics interfaces
  • Peripheral Pin Select (PPS) functionality
  • Temperature Range - 40°C to 105°C
  • Operating voltage range of 2.3V to 3.6V
  • 128KB Flash memory (plus an additional 3 KB of Boot Flash)
  • 16KB SRAM memory
  • MIPS16e® mode for up to 40% smaller code size
  • Low-power management modes (Sleep and Idle)
  • Peripheral Pin Select (PPS) functionality to allow function remap
  • 4 channels of hardware DMA with automatic data size detection
  • Four UARTs (12.5 Mbps) and two I2C™ modules
  • Hardware Real-Time Clock and Calendar (RTCC)
  • Five 16-bit and up to two 32-bit Timers/Counters
  • Five Capture inputs and Five Compare/PWM outputs
  • External graphics interface with up to 34 PMP pins
  • Audio data communication: I2S, LJ, RJ, USB
  • Audio data control interface: SPI and I2C™
      • Audio data master clock:
    • Generation of fractional clock frequencies
    • Can be synchronized with USB clock
    • Can be tuned in run-time
    • Can be tuned in run-time
      ADC Module:
    • 10-bit 1Msps rate with one Sample and Hold (S&H)
    • 28 analog inputs
    • Can operate during sleep mode
    • Flexible and independent ADC trigger sources
      Comparators:
    • Three dual-input Comparator modules
    • Programmable references with 32 voltage points
      In-circuit and in-application programming
    • 4-wire MIPS® Enhanced JTAG interface
    • Unlimited program and six complex data breakpoints
    • IEEE 1149.2-compatible (JTAG) boundary scan
