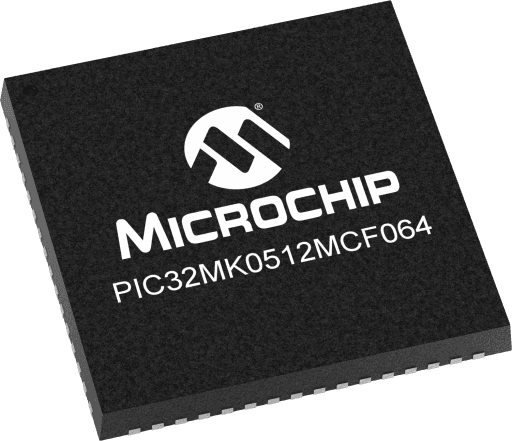

Microchip PIC32MK0512MCF064-E/MR
Manufacturer No:
PIC32MK0512MCF064-E/MR
Manufacturer:
Package:
64-VFQFN Exposed Pad
Description:
512kB Flash, 64 pin, 120 MHz,
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PIC32MK0512MCF064-E/MR information
Microchip PIC32MK0512MCF064-E/MR technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC32MK0512MCF064-E/MR.
- Type
- Parameter
- Part Family
- PIC32MKMC
- CPU Type
- 32-Bit MIPS MCU
- MaxSpeed (MHz)
- 120
- Program Memory Size (KB)
- 512
- SRAM (KB)
- 128
- Temp. Range Min.
- -40
- Temp. Range Max.
- 125
- Operation Voltage Min.(V)
- 2.2
- Operation Voltage Max.(V)
- 3.6
- SPI
- 6
- I2C
- 0
- UART
- 6
- Crypto Engine
- No
- Internal Oscillator
- 8Mhz
- Pin Count
- 64
Download datasheets and manufacturer documentation for Microchip PIC32MK0512MCF064-E/MR.
Legacy Collaterals:
Application Notes:
Tech Brief:
Reference Manual:
User Guide:
Brochures:
Data Sheets:
Recommended Alternative Device - PIC32MK0512MCM064
PIC32MK family devices combine 32-Bit, 120Mhz performance with up to 1MB of Flash memory, and a rich peripheral set targeting applications such as motor control, industrial control and Industrial Internet of Things (IIoT) and multi-channel CAN applications.
These devices feature 7x 12-Bit ADC's each operating at up to 3.75MSPS, which can be combined and sequenced to provide up to 18MSPS sampling rates!
- Recommended Alternative Device: PIC32MK0512MCM064
- 120Mhz MIPS32 microAptiv MCU Core
- Floating Point Unit for single and double precision math
- MicroMIPS Mode for 40% smaller code size
- Four 64-bit Accumulators
- Single Cycle MAC supporting saturating and fractional math
- 256KB Dual Panel Flash with Live Update support
- 4KB EEPROM
- 7x 12-bit 3.75MSPS ADC Cores up to 27 analog inputs
- Four Op amps
- Five analog comparators
- Up to three 12-bit DACs
- Eight PWM pairs
- Six additional Single-Ended PWM modules
- Dead Time for rising and falling edges
- Dead-Time Compensation
- 8 ns PWM Resolution
- Clock Chopping for High-Frequency Operation
- PWM Support for:
- DC/DC, AC/DC, inverters, PFC, lighting
- BLDC, PMSM, ACIM, SRM motors
- Choice of six Fault and Current Limit Inputs
- Flexible Trigger Configuration for ADC Triggering
- Up to 6 Quadrature Encoder Interface (QEI) Modules
- 16 Output Compare
- 16 Input Capture
- RTCC
- Single FS USB2.0
- Four CAN2.0 Modules
- Up to six UART Modules (up to 25Mbps) with LIN and IrDA support
- Up to six SPI/I2S modules
- Peripheral Pin Select (PPS) to enable remapable pin functions
- AEC-Q100 REVG (Grade 1 -40ºC to +125ºC) (planned)
- Class B Safety Library, IEC 60730 (planned)
- Back-up internal oscillator
- Programmable High/Low-Voltage Detect module
- Clock monitor with Back-up Internal Oscillator
- Global register locking
- In-circuit and in-application programming
- 2-wire or 4-wire MIPS® Enhanced JTAG interface
- Unlimited software and 12 complex breakpoints
- IEEE 1149.2-compatible (JTAG) boundary scan
- Non-intrusive hardware-based instruction trace
- MPLAB X Integrated Development Environment (IDE)
- MPLAB® Harmony Integrated Software Framework
- USB, Graphics, and mTouch™ middleware
- MFi, Android™, and Bluetooth® audio frameworks
- RTOS Kernels: Express Logic ThreadX, FreeRTOS™, OPENRTOS®, Micriµm® µC/OS™, and SEGGER
- Mathworks Matlab® Blockset
- SCILAB X2C Open Source Rapid Prototyping Tools
