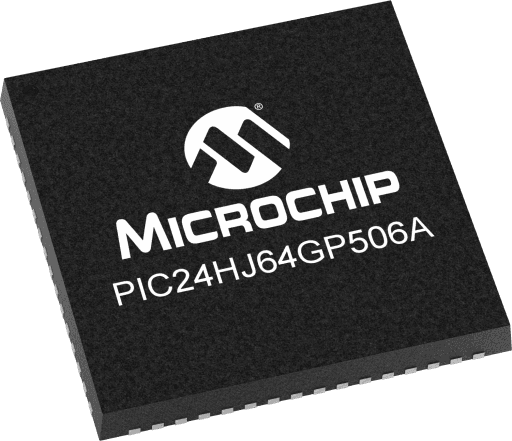

Microchip PIC24HJ64GP506A-I/PT
Manufacturer No:
PIC24HJ64GP506A-I/PT
Manufacturer:
Microchip
Package:
64-TQFP
Description:
40 MIPS, 64KB Flash, 8KB RAM, 64 pins, CAN
Quantity:
In Stock :2473
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
PIC24HJ64GP506A-I/PT Information
Microchip PIC24HJ64GP506A-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24HJ64GP506A-I/PT.
- Type
- Parameter
- CPU Type
- 16-bit PIC MCU
- CPU Speed Max MHz (megahertz)
- 40
- Program Memory Size (KB)
- 64
- Multiple Flash Panels
- False
- Direct Memory Access (DMA) Channels
- 8
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 125
- Operation Voltage Min.(V)
- 3
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 64
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 0
- ADC Modules
- 1
- ADC Channels
- 18
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 500
- Number of DACs
- 0
- DAC outputs
- 0
- Max DAC Resolution (bits)
- 0
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip PIC24HJ64GP506A-I/PT.
Data Sheets:
Reference Manual:
Programming Specifications:
Legacy Collaterals:
Brochures:
Application Notes:
The PIC24H 16-bit device family employs a powerful 16-bit architecture, ideal for applications that rely on high-speed, repetitive computations, as well as control.The devices are pin compatible with the dsPIC33F family of devices, and also share a very high degree of compatibility with the dsPIC30F family devices. This allows seamless migration options from/to PIC24F, dsPIC30F and dsPIC33F devices.
- Operating Conditions
- Up to 40 MIPS operation
- 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
- 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
- High efficiency PIC24H core
- Code-efficient (C and Assembly) architecture
- 16-bit wide data path, 24-bit wide instructions
- Linear program memory addressing up to 4M instruction words
- Single-cycle mixed-sign MUL plus hardware divide
- 16 x 16 multiply operations
- 32/16 and 16/16 divide operations
- Clock Management
- ±2% internal oscillator
- Programmable PLLs and oscillator clock sources
- Fail-Safe Clock Monitor (FSCM)
- Independent Watchdog Timer (WDT)
- Fast wake-up and start-up
- Power Management
- Low-power management modes (Sleep, Idle, Doze)
- Integrated Power-on Reset and Brown-out Reset
- 1.35 mA/MHz dynamic current (typical)
- 55 μA IPD current (typical)
- Advanced Analog Features
- Two ADC modules: - Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 Ksps with one S&H - 18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices
- Flexible and independent ADC trigger sources
- Timers/Output Compare/Input Capture
- Up to nine 16-bit timers/counters. Can pair up to make four 32-bit timers
- Eight Output Compare modules configurable as timers/counters
- Eight Input Capture modules
- Communication Interfaces
- Two UART modules (10 Mbps) - With support for LIN 2.0 protocols and IrDA®
- Two 4-wire SPI modules (15 Mbps)
- Up to two I2C™ modules (up to 1 Mbaud) with SM Bus support
- Enhanced CAN (ECAN) module (1 Mbaud) with 2.0B support
- Data Converter Interface (DCI) module with I2S codec support
- Input/Output
- Sink/Source up to 10 mA (pin specific) for standard VOH/VOL, up to 16 mA (pin specific) for nonstandard VOH1
- 5V-tolerant pins
- Selectable open drain, pull-ups, and pull-downs
- Up to 5 mA overvoltage clamp current
- External interrupts on all I/O
- Debugger Development Support
- In-circuit and in-application programming
- Two programs and two complex data breakpoints
- IEEE 1149.2-compatible (JTAG) boundary scan
- Trace and run-time watch
