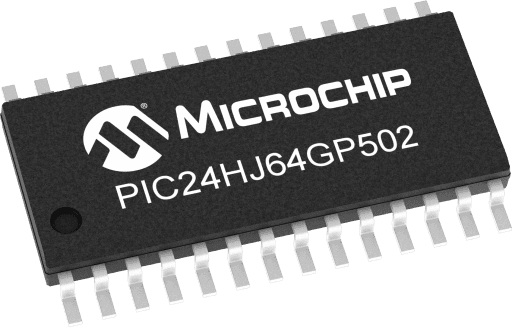

Microchip PIC24HJ64GP502-I/SO
Microchip PIC24HJ64GP502-I/SOMicrochip PIC24HJ64GP502-I/SOMicrochip PIC24HJ64GP502-I/SO

Microchip PIC24HJ64GP502-I/SO

Manufacturer No:

PIC24HJ64GP502-I/SO

Manufacturer:

Microchip

Package:

28-SOIC (0.295, 7.50mm Width)

Description:

40 MIPS, 64KB Flash, 8KB RAM, 28 pins, DAC, CAN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24HJ64GP502-I/SO information

Microchip PIC24HJ64GP502-I/SO technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24HJ64GP502-I/SO.

  • Type
  • Parameter
  • CPU Type
  • 16-bit PIC MCU
  • CPU Speed Max MHz (megahertz)
  • 40
  • Program Memory Size (KB)
  • 64
  • Multiple Flash Panels
  • False
  • Direct Memory Access (DMA) Channels
  • 8
  • Temp. Range Min.(C°)
  • -40
  • Temp. Range Max.(C°)
  • 150
  • Operation Voltage Min.(V)
  • 3
  • Operation Voltage Max.(V)
  • 3.6
  • Pin Count
  • 28
  • Low Power
  • No
  • Number of Comparators
  • 2
  • ADC Modules
  • 1
  • ADC Channels
  • 10
  • ADC Resolution Max
  • 12
  • ADC Sampling Rate (ksps)
  • 500
  • Number of DACs
  • 1
  • DAC outputs
  • 0
  • Max DAC Resolution (bits)
  • 4
  • Hardware RTCC
  • No
  • Motor Control PWM Channels
  • 0
  • SMPS PWM Channels
  • 0
  • Number of PWM Time Bases
  • 2
  • Output Compare Channels
  • 4
  • Number of CAN Modules
  • 1
  • Type of CAN module Max
  • CAN
  • Crypto Engine
  • No
  • Quadrature Encoder Interface (QEI)
  • 0
  • Segment LCD
  • 0
  • LCD/Graphics Interface
  • No
  • Configurable Logic Cell Modules (CLC /CCL)
  • 0
  • Peripheral Pin Select (PPS)/Pin Muxing
  • Yes

Download datasheets and manufacturer documentation for Microchip PIC24HJ64GP502-I/SO.

Application Notes:

Supporting Collateral:

Programming Specifications:

Brochures:

User Guide:

Reference Manual:

Legacy Collaterals:

Data Sheets:

Errata:

The PIC24H 16-bit device family employs a powerful 16-bit architecture, ideal for applications that rely on high-speed, repetitive computations, as well as control. The devices are pin compatible with the dsPIC33F family of devices, and share a very high degree of compatibility with the dsPIC30F family devices. This allows seamless migration options from/to PIC24F, dsPIC30F and dsPIC33F devices.

    Operating Conditions
  • Up to 40 MIPS operation
  • 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS
  • 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS
    High-Efficiency PIC24H core
  • Modified Harvard architecture
  • C compiler optimized instruction set
  • 16-bit wide data path, 24-bit wide instructions
  • Single-cycle MUL plus hardware divide
  • 16 x 16 multiply operations
  • 32/16 and 16/16 divide operations
  • Up to ±16-bit shifts for up to 40-bit data
    Clock Management
  • 2% internal oscillator
  • Programmable PLL and oscillator clock sources
  • Fail-Safe Clock Monitor (FSCM)
  • Independent Watchdog Timer
  • Low-power management modes
  • Fast wake-up and start-up
    Advanced Analog Features
  • 10/12-bit ADC with 1.1Msps/500 Ksps conversion rate: - Up to 13 ADC input channels and four S&H
  • Flexible/Independent trigger sources
  • 150 ns Comparators: - Up to two Analog Comparator modules
  • 4-bit DAC with two ranges for Analog Comparators
    Input/Output
  • Software remappable pin functions
  • 5V-tolerant pins
  • Selectable open drain and internal pull-ups
  • Up to 5 mA overvoltage clamp current/pin
  • Multiple external interrupts
    System Peripherals
  • Cyclic Redundancy Check (CRC) module
  • Up to five 16-bit and up to two 32-bit Timers/ Counters
  • Up to four Input Capture (IC) modules
  • Up to four Output Compare (OC) modules
  • Real-Time Clock and Calendar (RTCC) module
    Communication Interfaces
  • Parallel Master Port (PMP)
  • Two UART modules (10 Mbps) - Supports LIN 2.0 protocols - RS-232, RS-485, and IrDA® support
  • Two 4-wire SPI modules (15 Mbps)
  • Enhanced CAN (ECAN) module (1 Mbaud) with 2.0B support
  • I2C module (100K, 400K and 1Mbaud) with SM Bus support
    Direct Memory Access (DMA)
  • 8-channel hardware DMA with no CPU stalls or overhead
  • Most peripherals support DMA
    Debugger Development Support
  • In-circuit and in-application programming
  • Two program breakpoints
  • Trace and run-time watch

User Guide
