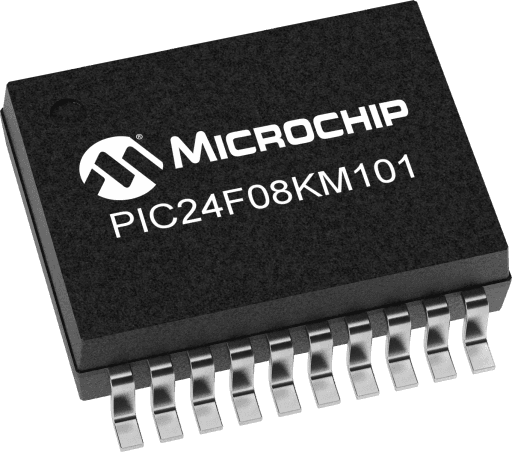

Microchip PIC24FV08KM101-I/P

Manufacturer No:

PIC24FV08KM101-I/P

Manufacturer:

Microchip

Package:

20-DIP (0.300, 7.62mm)

Description:

The PIC24F KM is a low power microcontroller with integrated 12-bit ADC, DAC and op amps in small pin-count packages for applications from 1.8 to 5.5V operation

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FV08KM101-I/P information

Microchip PIC24FV08KM101-I/P technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FV08KM101-I/P.

Type
Parameter

ADC Resolution (bits)
12

ADC Sampling Rate (ksps)
200

ADC Modules Min MB (megabyte)
1

CAN/CAN-FD
0

Type of CAN module Max A (ampere)
None

Configurable Logic Cell (CLC/CCL)
1

CPU
16-bit PIC MCU

CPU Speed (MIPS/DMIPS)
16

Number of Comparators
1

DAC Resolution (Bits)
0

DAC Outputs
0

Number of DACs
0

Hardware RTCC/RTC
No

Supported in MPLAB Code Configurator
Yes

Number of PWM Time Bases
2

Operation Voltage Max.(V)
5.5

Operation Voltage Min.(V)
1.8

Output Compare Channels
2

SMPS
0

Segmented LCD (# of segments)
0

USB
None

Program Memory Size (KB)
8

Peripheral Pin Select / Pin Muxing
No

Direct Memory Access (DMA) Channels
0

Graphics Controller/GPU
No

Motor Control PWM Outputs
0

Quadrature Encoder Interface
0

Low Power
Yes

ADC Channels
16

Pincount
20

Crypto Engine
No

TempRange Min
-40

TempRange Max
125

Download datasheets and manufacturer documentation for Microchip PIC24FV08KM101-I/P.

Low cost, Low pin out PIC24F Microcontroller family featuring nanoWatt eXtreme low power. The devices offer flexible Capture/Compare/PWM modules, Configurable Logic Cell and options for both 3V and 5V applications. PIC24FV products support 2.0V-5.5V operation and the PIC24F products support 1.8V-3.6V operation

PIC24FV products support 2.0V-5.5V operation
PIC24F products support 1.8V-3.6V operation

25nA Sleep mode
700nA Real Time Clock & Calendar operation in Sleep modes
500nA Watch Dog Timer operation in Sleep modes
512 Bytes of Data EEPROM

Ultra Low-Power wake-up from Sleep
Power Modes: Run, Doze, Idle, Sleep, Low-Voltage Sleep
System Supervisors: Low Power BOR, WDT, INT0
Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
Fail-Safe Clock Monitor – allows safe shutdown if clock fails

Up to 16 MIPS performance
Single Cycle Instruction Execution
16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider
C Compiler Optimized Instruction Set System

10/12-bit Differential ADC, Up to 22 channels, 100k samples per second at 12-bit conversion rate, threshold detect and dedicated band gap reference
Charge Time Measurement Unit (CTMU) enabling 22 channels of Capacitive Touch, time measurement down to 200 ps
One Analog rail-to-rail comparator

1 MCCP and 1 SCCP modules
MCCP (Multiple-output Capture Compare PWM Module) and SCCP (Single-output Capture Compare PWM Module) combine Timer, Input Capture, Output Compare/PWM in a single timebase
Each SCCP has a single output and each MCCP has 2,4 or 6 outputs
MCCP features output steering, hardware scan, complementary output with dead time, push-pull output, bidirectional brush DC motor control
Each MCCP/SCCP includes 2 x 16-bit timers or 1x 32-bit timer
Up to 5x 16-bit timers including MCCP and SCCP timers
Pair timers for a total of 2 x 32-bit timers

UART Module with LIN and IrDA support, 4 Deep FIFO
SPI Module with 8 Deep FIFO
I2C™ Module with Master and Slave Modes

Configurable Logic Cell (CLC) for user configurable real time logic control
