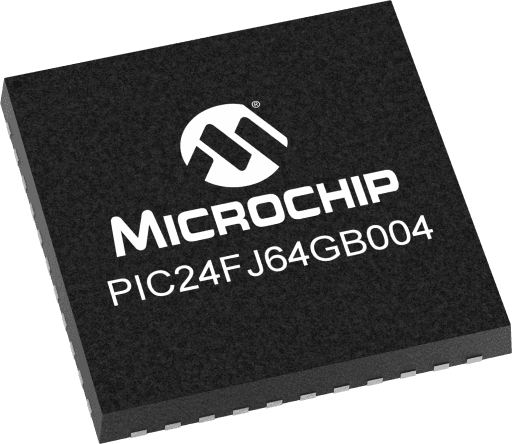

Microchip PIC24FJ64GB004T-I/PT
Microchip PIC24FJ64GB004T-I/PTMicrochip PIC24FJ64GB004T-I/PT

Microchip PIC24FJ64GB004T-I/PT

Manufacturer No:

PIC24FJ64GB004T-I/PT

Manufacturer:

Microchip

Package:

44-TQFP

Description:

16 MIPS, 64KB Flash, 8KB RAM, 44 pins, XLP, USB

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FJ64GB004T-I/PT information

Microchip PIC24FJ64GB004T-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ64GB004T-I/PT.

  • Type
  • Parameter
  • CPU Type
  • 16-bit PIC MCU
  • CPU Speed Max MHz (megahertz)
  • 16
  • Program Memory Size (KB)
  • 64
  • Multiple Flash Panels
  • False
  • Direct Memory Access (DMA) Channels
  • 0
  • Temp. Range Min.(C°)
  • -40
  • Temp. Range Max.(C°)
  • 125
  • Operation Voltage Min.(V)
  • 2
  • Operation Voltage Max.(V)
  • 3.6
  • Pin Count
  • 44
  • Low Power
  • Yes
  • Number of Comparators
  • 3
  • ADC Modules
  • 1
  • ADC Channels
  • 13
  • ADC Resolution Max
  • 10
  • ADC Sampling Rate (ksps)
  • 500
  • Number of DACs
  • 0
  • DAC outputs
  • 0
  • Max DAC Resolution (bits)
  • 0
  • Hardware RTCC
  • No
  • Motor Control PWM Channels
  • 0
  • SMPS PWM Channels
  • 0
  • Number of PWM Time Bases
  • 5
  • Output Compare Channels
  • 5
  • Number of CAN Modules
  • 0
  • Type of CAN module Max
  • None
  • Crypto Engine
  • No
  • Quadrature Encoder Interface (QEI)
  • 0
  • Segment LCD
  • 0
  • LCD/Graphics Interface
  • No
  • Configurable Logic Cell Modules (CLC /CCL)
  • 0
  • Peripheral Pin Select (PPS)/Pin Muxing
  • Yes
  • Supported in MPLAB Code Configurator
  • Yes

Download datasheets and manufacturer documentation for Microchip PIC24FJ64GB004T-I/PT.

User Guide:

Reference Manual:

Application Notes:

Brochures:

Data Sheets:

Programming Specifications:

Errata:

Supporting Collateral:

Legacy Collaterals:

PIC24 16-bit low power microcontroller with Full-Speed USB, 64 KB Flash memory, 8 KB RAM, and advanced peripherals, 44-pin package

    CPU
  • Up to 16 MIPS performance
  • 16 x 16 Hardware Multiply, Single Cycle Execution
  • 32-bit x 16-bit Hardware Divider
  • C Compiler Optimized Instruction Set
    System
  • Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
  • On-chip LDO Voltage Regulator
  • JTAG Boundary Scan and Flash Memory Program Support
  • Fail-Safe Clock Monitor – allows safe shutdown if clock fails
  • Watchdog Timer with separate RC oscillator
    eXtreme Low Power Managed Modes
  • Run, Idle and Sleep modes
  • Deep sleep mode for lowest current consumption
  • Multiple, Switchable Clock Modes for Optimum Performance and Power Management
    Analog Features
  • 10-bit ADC, 13 channels, 500k samples per second
  • 3 Analog comparators
    Other Peripherals
  • 2 UART Modules with LIN and IrDA® support, 4 Deep FIFO
  • 2 SPI ™ Modules with 8 Deep FIFO
  • 2 I2C™ Modules with Master and Slave Modes
  • Five 16-bit Timer Modules
  • Up to 5 Input Capture and 5 Output Compare / PWM,all with dedicated timers
  • Hardware RTCC, Real-Time Clock Calendar with Alarms
  • PMP, Parallel Master Port, with 16 Address Lines, and 8/16-bit Data
  • Peripheral Pin Select for remapping digital peripherals to I/O
  • Charge Time Measurement Unit (CTMU) for capacitive touch interface
    Universal Serial Bus Features
  • USB v2.0 On-the-Go compliant
  • Dual role capable, can act as either Host or Device
  • Low speed(1.5Mb/s) and full speed(12 Mb/s) operation in host mode
  • Full speed USB operaton in Device mode
  • Supports 32 endpoints
  • On-chip USB transceiver
