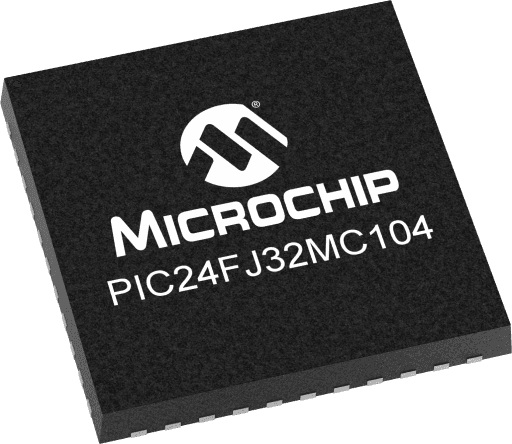

Microchip PIC24FJ32MC104-I/PT
Microchip PIC24FJ32MC104-I/PTMicrochip PIC24FJ32MC104-I/PT

Microchip PIC24FJ32MC104-I/PT

Manufacturer No:

PIC24FJ32MC104-I/PT

Manufacturer:

Microchip

Package:

44-TQFP

Description:

16 MIPS, 32KB Flash, 2KB RAM, 44 pins, Motor Control

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FJ32MC104-I/PT information

Microchip PIC24FJ32MC104-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ32MC104-I/PT.

  • Type
  • Parameter
  • CPU Type
  • 16-bit PIC MCU
  • CPU Speed Max MHz (megahertz)
  • 16
  • Program Memory Size (KB)
  • 32
  • Multiple Flash Panels
  • False
  • Direct Memory Access (DMA) Channels
  • 0
  • Temp. Range Min.(C°)
  • -40
  • Temp. Range Max.(C°)
  • 125
  • Operation Voltage Min.(V)
  • 3
  • Operation Voltage Max.(V)
  • 3.6
  • Pin Count
  • 44
  • Low Power
  • No
  • Number of Comparators
  • 3
  • ADC Modules
  • 1
  • ADC Channels
  • 14
  • ADC Resolution Max
  • 10
  • ADC Sampling Rate (ksps)
  • 1100
  • Number of DACs
  • 1
  • DAC outputs
  • 0
  • Max DAC Resolution (bits)
  • 4
  • Hardware RTCC
  • Yes
  • Motor Control PWM Channels
  • 6
  • SMPS PWM Channels
  • 0
  • Number of PWM Time Bases
  • 2
  • Output Compare Channels
  • 3
  • Number of CAN Modules
  • 0
  • Type of CAN module Max
  • None
  • Crypto Engine
  • No
  • Quadrature Encoder Interface (QEI)
  • 0
  • Segment LCD
  • 0
  • LCD/Graphics Interface
  • No
  • Configurable Logic Cell Modules (CLC /CCL)
  • 0
  • Peripheral Pin Select (PPS)/Pin Muxing
  • Yes

Download datasheets and manufacturer documentation for Microchip PIC24FJ32MC104-I/PT.

Data Sheets:

Programming Specifications:

Brochures:

Supporting Collateral:

Legacy Collaterals:

Errata:

Reference Manual:

Application Notes:

An ultra low cost, high performance 16-bit motor control family of microcontrollers featuring CTMU, MCPWMs, PPS and other advanced peripherals with low pin count and small footprint options.

    CPU
  • Up to 16 MIPS operation
  • 16 x 16 integer multiply operations
  • 32/16 and 16/16 integer divide operation
    On-Chip Flash and SRAM
  • Flash program memory (32 Kbytes)
  • Data SRAM (2 Kbytes)
  • Security for program Flash
    Motor Control PWM
  • 6-channel 16-bit Motor Control PWM
  • Three duty cycle generators
  • Independent or Complementary mode
  • Programmable dead time and output polarity
  • Edge-aligned or center-aligned modes
    Analog Peripherals
  • 10-bit, 1.1 Msps Analog-to-Digital Converter (ADC)
  • Two and four simultaneous samples
  • Up to 14 input channels with auto-scanning
  • Three Analog Comparators with programmable input/output configuration
  • Charge Time Measurement Unit (CTMU)
  • Supports capacitive touch sensing for touchscreens and capacitive switches Timers/Capture/Compare/PWM
  • Up to five 16-bit timers
  • Input Capture (up to three channels): Capture on up, down, or both edges- 16-bit capture input functions
  • Output Compare (up to two channels): Single or Dual 16-bit Compare mode
  • Hardware Real-Time Clock and Calendar (RTCC)
    Communication Modules
  • 4-wire SPI
  • I2C™
  • UART
    System Management
  • Flexible clock options
  • High-accuracy internal FRC
  • Power-on Reset (POR)
  • Power-up Timer (PWRT)
  • Brown-out Reset (BOR)Power Management
  • Single supply on-chip voltage regulator
  • Switch between clock sources in real time
  • Idle, Sleep, and Doze modes with fast wake-up
