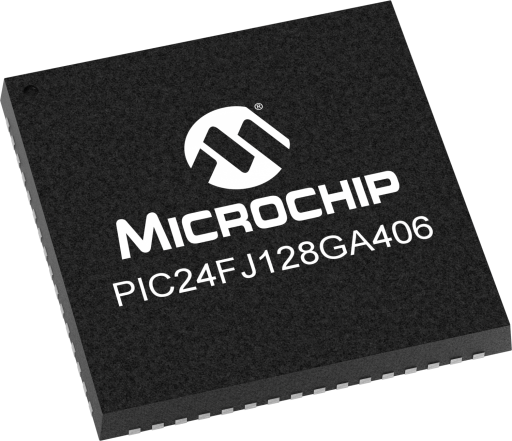

Microchip PIC24FJ128GA406-I/PT

Manufacturer No:

PIC24FJ128GA406-I/PT

Manufacturer:

Microchip

Package:

64-TQFP

Description:

The PIC24F GA4 is a low power microcontroller with security and segmented LCD driver, designed for applications that need to protect user data while conserving power and extending battery life

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FJ128GA406-I/PT information

Microchip PIC24FJ128GA406-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ128GA406-I/PT.

Type
Parameter

CPU Type
16-bit PIC MCU

CPU Speed Max MHz (megahertz)
16

Program Memory Size (KB)
128

Multiple Flash Panels
True

Direct Memory Access (DMA) Channels
6

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
85

Operation Voltage Min.(V)
2

Operation Voltage Max.(V)
3.6

Pin Count
64

Low Power
Yes

Number of Comparators
3

ADC Modules
1

ADC Channels
16

ADC Resolution Max
12

ADC Sampling Rate (ksps)
500

Number of DACs
1

DAC outputs
1

Max DAC Resolution (bits)
10

Hardware RTCC
Yes

Motor Control PWM Channels
0

SMPS PWM Channels
0

Number of PWM Time Bases
1

Output Compare Channels
6

Number of CAN Modules
0

Type of CAN module Max
None

Crypto Engine
Yes

Quadrature Encoder Interface (QEI)
0

Segment LCD
248

LCD/Graphics Interface
No

Configurable Logic Cell Modules (CLC /CCL)
4

Peripheral Pin Select (PPS)/Pin Muxing
Yes

Supported in MPLAB Code Configurator
Yes

Download datasheets and manufacturer documentation for Microchip PIC24FJ128GA406-I/PT.

16-bit microcontroller featuring an integrated crypto module and eXtreme Low Power. This device includes 128KB Flash, 16KB RAM, segmented LCD and other advanced peripherals. The combination of features makes the part ideally suited for low power embedded security applications.

Performs NIST Standard Encryption/Decryption Operations without CPU Intervention
AES Cipher Support for 128, 192 and 256-Bit Keys
DES/3DES Cipher Support, with up to Three Unique Keys for 3DES
Supports ECB, CBC, OFB, CTR and CFB128 modes
Programmatically Secure OTP Array for Key Storage
True Random Number Generation
Battery-Backed RAM Key Storage

Multiple Power Management Options for Extreme Power Reduction:
VBAT allows for lowest power consumption on backup battery (with or without RTCC)
Deep Sleep allows near total power-down with the ability to wake-up on external triggers
Sleep and Idle modes selectively shut down peripherals and/or core for substantial power reduction and fast wake-up
Doze mode allows CPU to run at a lower clock speed than peripherals
Alternate Clock modes allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction
Extreme Low-Power Current Consumption for Deep Sleep WDT: 650 nA @ 2V typical RTCC: 650 nA @ 32 kHz, 2V typical Deep Sleep current, 60 nA typical
160 uA/MHz in Run mode

Modified Harvard Architecture
Up to 16 MIPS Operation @ 32 MHz
8 MHz Internal Oscillator: 96 MHz PLL / Multiple clock divide options / Fast start-up
17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
32-Bit by 16-Bit Hardware Divider
16 x 16-Bit Working Register Array
C Compiler Optimized Instruction Set Architecture
Two Address Generation Units for Separate Read and Write Addressing of Data Memory

10/12-Bit, up to 24-Channel Analog-to-Digital (A/D) Converter:
Conversion rate of 500 ksps (10-bit), 200 kbps (12-bit)
Auto-scan and threshold compare features
Conversion available during Sleep
One 10-Bit Digital-to-Analog Converter (DAC): 1Msps update rate
Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration
Charge Time Measurement Unit (CTMU) for cap touch or precise time measurement

Capable of Holding Two Independent Software Applications, including Bootloader
Permits Simultaneous Programming of One Partition while Executing Application Code from the Other
Allows Run-Time Switching Between Active Partitions
