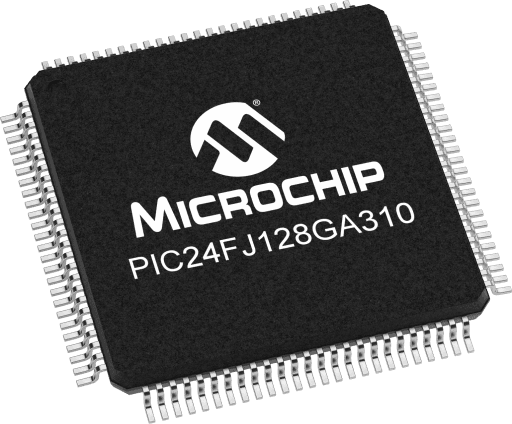

Microchip PIC24FJ128GA310-I/PT
Microchip PIC24FJ128GA310-I/PTMicrochip PIC24FJ128GA310-I/PTMicrochip PIC24FJ128GA310-I/PT

Microchip PIC24FJ128GA310-I/PT

Manufacturer No:

PIC24FJ128GA310-I/PT

Manufacturer:

Microchip

Package:

100-TQFP

Description:

16 MIPS, 128KB Flash, 8KB RAM, 100 pins, Segmented LCD Driver, XLP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FJ128GA310-I/PT information

Microchip PIC24FJ128GA310-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ128GA310-I/PT.

  • Type
  • Parameter
  • CPU Type
  • 16-bit PIC MCU
  • CPU Speed Max MHz (megahertz)
  • 16
  • Program Memory Size (KB)
  • 128
  • Multiple Flash Panels
  • False
  • Direct Memory Access (DMA) Channels
  • 6
  • Temp. Range Min.(C°)
  • -40
  • Temp. Range Max.(C°)
  • 85
  • Operation Voltage Min.(V)
  • 2
  • Operation Voltage Max.(V)
  • 3.6
  • Pin Count
  • 100
  • Low Power
  • Yes
  • Number of Comparators
  • 3
  • ADC Modules
  • 1
  • ADC Channels
  • 24
  • ADC Resolution Max
  • 12
  • ADC Sampling Rate (ksps)
  • 500
  • Number of DACs
  • 0
  • DAC outputs
  • 0
  • Max DAC Resolution (bits)
  • 0
  • Hardware RTCC
  • Yes
  • Motor Control PWM Channels
  • 0
  • SMPS PWM Channels
  • 0
  • Number of PWM Time Bases
  • 7
  • Output Compare Channels
  • 7
  • Number of CAN Modules
  • 0
  • Type of CAN module Max
  • None
  • Crypto Engine
  • No
  • Quadrature Encoder Interface (QEI)
  • 0
  • Segment LCD
  • 480
  • LCD/Graphics Interface
  • No
  • Configurable Logic Cell Modules (CLC /CCL)
  • 0
  • Peripheral Pin Select (PPS)/Pin Muxing
  • Yes
  • Supported in MPLAB Code Configurator
  • Yes

Download datasheets and manufacturer documentation for Microchip PIC24FJ128GA310-I/PT.

Brochures:

Data Sheets:

Programming Specifications:

Errata:

Application Notes:

Legacy Collaterals:

Reference Manual:

Supporting Collateral:

PIC24F 16-bit Microcontroller featuring nanoWatt XLP for eXtreme Low Power consumption. The device includes advanced low power features including a Low Voltage Sleep mode that maintains the device state and RAM with a typical current of 340 nA, and a Vbat pin that automatically transitions the RTCC to a battery supply when Vdd is removed. The family includes a 480 segment LCD Driver with 60 segment x 8 common drive capability. The combination of feature make the part ideally suited to a number of battery powered and general purpose applications.

    Low Power nanoWatt XLP
  • 10 nA Deep Sleep mode
  • 400 nA RTCC in Vbat mode
  • 330 nA Low Voltage Sleep mode (RAM retention)
  • 400 nA Real Time Clock & Calendar operation in Sleep modes
  • 270 nA Watch Dog Timer operation in Deep Sleep modes
  • 150 uA/MHz Run mode
  • Power Modes: Run, Doze, Idle, Sleep, Low Voltage Sleep, Deep Sleep, Vbat
  • Multiple, Switchable Clock Modes for Optimum Performance and Power Management
  • System Supervisors: Low Power BOR, WDT, INT0 and RTCC
    CPU
  • Up to 16 MIPS performance
  • Single Cycle Instruction Execution
  • 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider
  • C Compiler Optimized Instruction Set System
    Peripherals
  • Upto 480 segment LCD Driver with 60 segment x 8 common drive
  • 10/12-bit Differential ADC, 24 channels, 200/500 Ksps with Threshold Detect
  • Peripheral Pin Select allows I/O remapping of many peripherals in real time
  • Charge Time Measurement Unit (CTMU) enabling 24 channels of Capacitive Touch
  • Three Analog rail-to-rail comparators Peripherals
  • Hardware RTCC, Real-Time Clock Calendar with Alarms
    System
  • Internal oscillators support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
  • Fail-Safe Clock Monitor - allows safe shutdown if clock fails
  • Watchdog Timer with separate RC oscillator
  • System Supervisors: Low Power BOR, WDT, INT0 and RTCC
  • JTAG Boundary Scan
