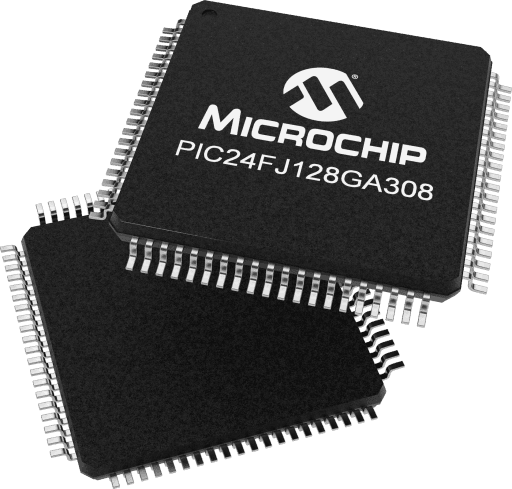

Microchip PIC24FJ128GA308T-I/PT
Manufacturer No:
PIC24FJ128GA308T-I/PT
Manufacturer:
Microchip
Package:
80-TQFP
Description:
16 MIPS, 128KB Flash, 8KB RAM, 80 pins, Segmented LCD Driver, USB, XLP
Quantity:
In Stock :7460
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Tue, Jun 30 - Wed, Jul 1, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
PIC24FJ128GA308T-I/PT Information
Microchip PIC24FJ128GA308T-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ128GA308T-I/PT.
- Type
- Parameter
- CPU Type
- 16-bit PIC MCU
- CPU Speed Max MHz (megahertz)
- 16
- Program Memory Size (KB)
- 128
- Multiple Flash Panels
- False
- Direct Memory Access (DMA) Channels
- 6
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 85
- Operation Voltage Min.(V)
- 2
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 80
- Type
- Parameter
- Low Power
- Yes
- Number of Comparators
- 3
- ADC Modules
- 1
- ADC Channels
- 16
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 500
- Number of DACs
- 0
- DAC outputs
- 0
- Max DAC Resolution (bits)
- 0
- Hardware RTCC
- Yes
Download datasheets and manufacturer documentation for Microchip PIC24FJ128GA308T-I/PT.
Application Notes:
Legacy Collaterals:
Data Sheets:
Reference Manual:
Brochures:
Supporting Collateral:
Programming Specifications:
PIC24F 16-bit Microcontroller featuring nanoWatt XLP for eXtreme Low Power consumption. The device includes advanced low power features including a Low Voltage Sleep mode that maintains the device state and RAM with a typical current of 340 nA, and a Vbat pin that automatically transitions to the RTCC to a battery supply when Vdd is removed. The family is also includes a 480 segment LCD Driver with 60 segment x 8 common drive capability. The combination of feature make the part ideally suited to a number of battery powered and general purpose applications.
- Low Power nanoWatt XLP
- 10 nA Deep Sleep mode
- 400 nA RTCC in Vbat mode
- 330 nA Low Voltage Sleep mode (RAM retention)
- 400 nA Real Time Clock & Calendar operation in Sleep modes
- 270 nA Watch Dog Timer operation in Deep Sleep modes
- 150 uA/MHz Run mode
- Power Modes: Run, Doze, Idle, Sleep, Low Voltage Sleep, Deep Sleep, Vbat
- Multiple, Switchable Clock Modes for Optimum Performance and Power Management
- System Supervisors: Low Power BOR, WDT, INT0 and RTCC
- CPU
- Up to 16 MIPS performance
- Single Cycle Instruction Execution
- 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider
- C Compiler Optimized Instruction Set System
- Peripherals
- Upto 480 segment LCD Driver with 60 segment x 8 common drive
- 10/12-bit Differential ADC, 24 channels, 200/500 Ksps with Threshold Detect
- Peripheral Pin Select allows I/O remapping of many peripherals in real time
- Charge Time Measurement Unit (CTMU) enabling 24 channels of Capacitive Touch
- Three Analog rail-to-rail comparators Peripherals
- Hardware RTCC, Real-Time Clock Calendar with Alarms
- System
- Internal oscillators support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
- Fail-Safe Clock Monitor - allows safe shutdown if clock fails
- Watchdog Timer with separate RC oscillator
- System Supervisors: Low Power BOR, WDT, INT0 and RTCC
- JTAG Boundary Scan
