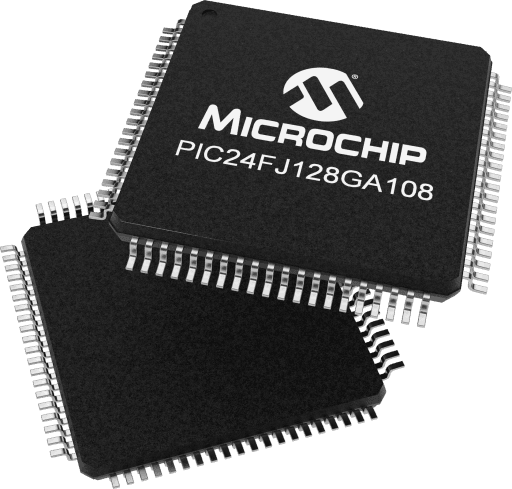

Microchip PIC24FJ128GA108T-I/PT

Manufacturer No:

PIC24FJ128GA108T-I/PT

Manufacturer:

Microchip

Package:

80-TQFP

Description:

16 MIPS, 128KB Flash, 16KB RAM, 80 pins

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FJ128GA108T-I/PT information

Microchip PIC24FJ128GA108T-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ128GA108T-I/PT.

Type
Parameter

CPU Type
16-bit PIC MCU

CPU Speed Max MHz (megahertz)
16

Program Memory Size (KB)
128

Multiple Flash Panels
False

Direct Memory Access (DMA) Channels
0

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
125

Operation Voltage Min.(V)
2

Operation Voltage Max.(V)
3.6

Pin Count
80

Low Power
No

Number of Comparators
3

ADC Modules
1

ADC Channels
16

ADC Resolution Max
10

ADC Sampling Rate (ksps)
500

Number of DACs
0

DAC outputs
0

Max DAC Resolution (bits)
0

Hardware RTCC
No

Motor Control PWM Channels
0

SMPS PWM Channels
0

Number of PWM Time Bases
9

Output Compare Channels
9

Number of CAN Modules
0

Type of CAN module Max
None

Crypto Engine
No

Quadrature Encoder Interface (QEI)
0

Segment LCD
0

LCD/Graphics Interface
No

Configurable Logic Cell Modules (CLC /CCL)
0

Peripheral Pin Select (PPS)/Pin Muxing
Yes

Supported in MPLAB Code Configurator
Yes

Download datasheets and manufacturer documentation for Microchip PIC24FJ128GA108T-I/PT.

Ideal for low power (<100nA standby current) and connectivity applications that benefit from the availability of multiple serial ports (3xI2C, 3xSPI), 4xUARTS, and 23 independent timers. Large amounts of RAM (16kB) memory for buffering and large (up to 256kB) Enhanced Flash program memory make it ideal for embedded control and monitoring applications. PPS (Peripheral Pin Select) aids in configuring the most efficient pin configuration of available I/O, and CTMU provides touch sensing support for up to 64 individual buttons. Available in 64, 80, and 100 pin packages.

Up to 16 MIPS performance
16 x 16 Hardware Multiply, Single Cycle Execution
12-bit x 16-bit Hardware Divider
C Compiler Optimized Instruction Set

Run, Idle and Sleep modes
Multiple, Switchable Clock Modes for Optimum Performance and Power Management
Run mode: 1 mA/MIPS, 2.0V Typical
Sleep mode Current Down to 100 nA Typical
Standby Current with 32 kHz Oscillator:2.5 uA,2.0V typical

Self-Reprogrammable under Software Control
10,000 erase/write cycles
20 year data retention
EEprom emulation capable

Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
On-chip LDO Voltage Regulator
JTAG Boundary Scan and Flash Memory Program Support
Fail-Safe Clock Monitor – allows safe shutdown if clock fails
Watchdog Timer with separate RC oscillator

10-bit ADC, 16 channels, 500k samples per second
Three Analog comparators

CTMU supports Capacitive Touch applications
Perpheral Pin Select allows I/O remapping of many peripherals in real time
4xUART Modules with LIN and IrDA support, 4 Deep FIFO
3xSPI ™ Modules with 8 Deep FIFO
3xI2C™ Modules with Master and Slave Modes
Five 16-bit Timer Modules
Up to 9 Input Capture and 9 Output Compare/PWM with dedicated time base
Hardware RTCC, Real-Time Clock Calendar with Alarms
PMP, Parallel Master Port, with 16 Address Lines, and 8/16-bit Data
