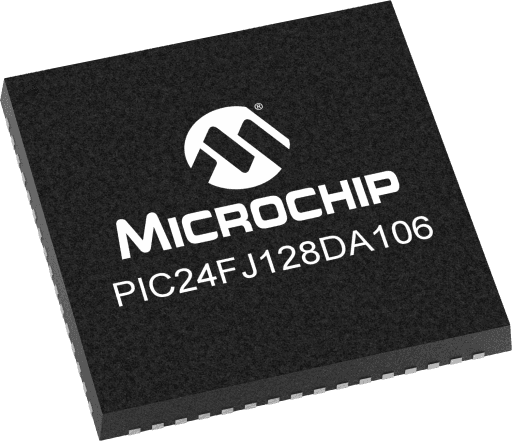

Microchip PIC24FJ128DA106-I/PT

Manufacturer No:

PIC24FJ128DA106-I/PT

Manufacturer:

Microchip

Package:

64-TQFP

Description:

16 MIPS, 128KB Flash, 24KB RAM, 64 pins, USB, Graphics Controller

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FJ128DA106-I/PT information

Microchip PIC24FJ128DA106-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ128DA106-I/PT.

Type
Parameter

ADC Resolution (bits)
10

ADC Sampling Rate (ksps)
500

ADC Modules Min MB (megabyte)
1

CAN/CAN-FD
0

Type of CAN module Max A (ampere)
None

Configurable Logic Cell (CLC/CCL)
0

CPU
16-bit PIC MCU

CPU Speed (MIPS/DMIPS)
16

Number of Comparators
3

DAC Resolution (Bits)
0

DAC Outputs
0

Number of DACs
0

Hardware RTCC/RTC
No

Supported in MPLAB Code Configurator
Yes

Number of PWM Time Bases
9

Operation Voltage Max.(V)
3.6

Operation Voltage Min.(V)
2.2

Output Compare Channels
9

SMPS
0

Segmented LCD (# of segments)
0

USB
FS Device/Host/OTG

Program Memory Size (KB)
128

Peripheral Pin Select / Pin Muxing
Yes

Direct Memory Access (DMA) Channels
2

Graphics Controller/GPU
Yes

Motor Control PWM Outputs
0

Quadrature Encoder Interface
0

Low Power
No

ADC Channels
16

Pincount
64

Crypto Engine
No

TempRange Min
-40

TempRange Max
85

Download datasheets and manufacturer documentation for Microchip PIC24FJ128DA106-I/PT.

The PIC24F-DA family features integrated graphics acceleration and a display controller to directly drive displays up to 4.3" WQVGA with 480 × 272 resolution. Ideal for Graphical interface applications that can benefit from the integrated Graphics, 96K byte RAM for frame buffer, mTouch, USB and other peripherals.

Graphics Application Design Center

Note: Due to limited ecosystem support, we do not recommend this part for new designs. In accordance with Microchip's policy, this part will remain in production.

3x Graphics Hardware Acceleration Units
Color Look-up Table (CLUT) with Maximum of 256 Entries
Direct Interface to Monochrome, C-STN, TFT, OLED
Resolution up to 640x480 @30Hz, 16 bpp, or 480x272 @60Hz, 16 bpp

USB v2.0 On-the-Go (OTG) compliant
Dual role capable - can act as either Host or Device
Low speed(1.5Mb/s) and full speed(12 Mb/s) operation in host mode
Full speed USB operaton in Device mode

Up to 24x, Capacitive touch sensing
Up to 24x, 10-Bit, ADC at 500 ksps
3x Analog Comparators with Programmable Input/Output Configuration

On-Chip Voltage Regulator of 1.8V
Switch between Clock Sources in Real Time
Idle, Sleep and Doze modes with Fast Wake-up and Two-Speed Start-up
Run Mode: 800 uA/MIPS, 3.3V Typical
Sleep mode Current Down to 20 uA, 3.3V Typical
Standby Current with 32 kHz Oscillator: 22 uA, 3.3V Typical
