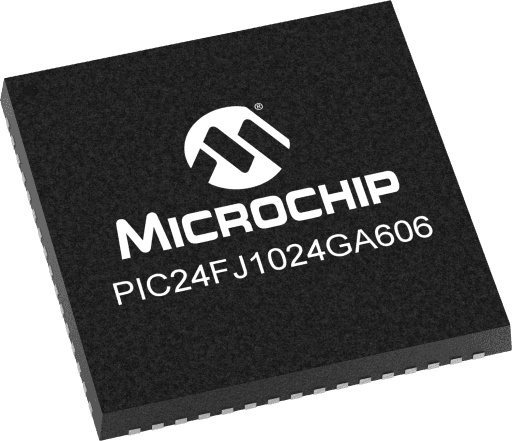

Microchip PIC24FJ1024GA606T-I/PT

Manufacturer No:

PIC24FJ1024GA606T-I/PT

Manufacturer:

Microchip

Package:

Description:

Low Power MCU with a large memory featuring dual-partition Flash with Live Update capability. Ideal for industrial, computer, medical/fitness and portable applications that require a long battery life, and data transfer and storage without the need of external memory

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24FJ1024GA606T-I/PT information

Microchip PIC24FJ1024GA606T-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24FJ1024GA606T-I/PT.

Type
Parameter

CPU Type
16-bit PIC MCU

CPU Speed Max MHz (megahertz)
16

Program Memory Size (KB)
1024

Multiple Flash Panels
True

Direct Memory Access (DMA) Channels
8

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
125

Operation Voltage Min.(V)
2

Operation Voltage Max.(V)
3.6

Pin Count
64

Low Power
Yes

Number of Comparators
3

ADC Modules
1

ADC Channels
16

ADC Resolution Max
12

ADC Sampling Rate (ksps)
200

Number of DACs
0

DAC outputs
0

Max DAC Resolution (bits)
0

Hardware RTCC
Yes

Motor Control PWM Channels
0

SMPS PWM Channels
0

Number of PWM Time Bases
1

Output Compare Channels
6

Number of CAN Modules
0

Type of CAN module Max
None

Crypto Engine
No

Quadrature Encoder Interface (QEI)
0

Segment LCD
0

LCD/Graphics Interface
No

Configurable Logic Cell Modules (CLC /CCL)
4

Peripheral Pin Select (PPS)/Pin Muxing
Yes

Supported in MPLAB Code Configurator
Yes

Download datasheets and manufacturer documentation for Microchip PIC24FJ1024GA606T-I/PT.

The eXtreme low power, PIC24F MCU includes up to 1MB of Flash memory with Error Correction Code (ECC) and 32 KB of RAM. This device features dual-partition Flash with Live Update capability, enabling them to hold two independent software applications, permitting simultaneous programming of one partition while executing application code from the other. With the ability to perform over-the-air firmware updates, designers can provide a cost-effective, reliable and secure method for updating their applications. These MCUs also feature eXtreme low power modes with current consumptions as low as 300nA in sleep modes.

This powerful combination of features makes the PIC24F “GA6” family ideal for industrial, computer, medical/fitness and portable applications that require a long battery life, and data transfer and storage without the need of external memory, such as electricity metering, HVAC control, fingerprint scanners and gaming.

Modified Harvard Architecture
Up to 16 MIPS Operation @ 32 MHz
8 MHz Internal Oscillator:
96 MHz PLL option
Multiple clock divide options
Run-time self-calibration capability for maintaining better than ±0.20% accuracy
Fast start-up
17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier
32-Bit by 16-Bit Hardware Divider
16 x 16-Bit Working Register Array
C Compiler Optimized Instruction Set Architecture
Two Address Generation Units for Separate Read and Write Addressing of Data Memory

Dual Partition Flash with Live Update Capability
Capable of Holding Two Independent Software Applications, including Bootloader
Permits Simultaneous Programming of One Partition while Executing Application Code from the Other
Allows Run-Time Switching Between Active Partitions

Sleep and Idle modes Selectively Shut Down Peripherals and/or Core for Substantial Power Reduction and Fast Wake-up
Doze mode Allows CPU to Run at a Lower Clock Speed than Peripherals
Alternate Clock modes Allow On-the-Fly Switching to a Lower Clock Speed for Selective Power Reduction

10/12-Bit, up to 24-Channel Analog-to-Digital (A/D) Converter:
12-bit conversion rate of 200 ksps
Auto-scan and threshold compare features
Conversion available during Sleep
Three Rail-to-Rail, Enhanced Analog Comparators with Programmable Input/Output Configuration
Charge Time Measurement Unit (CTMU):
Used for capacitive touch sensing, up to 24 channels
Time measurement down to 100 ps resolution

Peripheral Pin Select (PPS) –Allows Independent I/O Mapping of Many Peripherals
Eight-Channel DMA Supports All Peripheral modules
Six Input Capture modules, Each with a Dedicated 16-Bit Timer
Six Output Compare/PWM modules, Each with a Dedicated 16-Bit Timer
Four Single Output CCPs (SCCPs) and Three Multiple Output CCPs (MCCPs)
Enhanced Parallel Master/Slave Port (EPMP/EPSP)
Hardware Real-Time Clock/Calendar (RTCC) with Timestamping
Programmable 32-Bit Cyclic Redundancy Check (CRC) Generator
Four Configurable Logic Cells (CLCs)
5.5V Tolerant Inputs on Multiple I/O Pins
