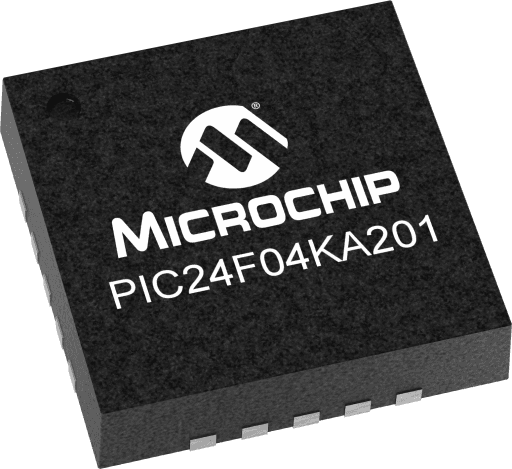

Microchip PIC24F04KA201-I/SS
Microchip PIC24F04KA201-I/SSMicrochip PIC24F04KA201-I/SSMicrochip PIC24F04KA201-I/SSMicrochip PIC24F04KA201-I/SS

Microchip PIC24F04KA201-I/SS

Manufacturer No:

PIC24F04KA201-I/SS

Manufacturer:

Microchip

Package:

20-SSOP (0.209, 5.30mm Width)

Description:

The PIC24F KA1 is a low power microcontroller for very cost sensitive applications requiring 16 MIPS performance and advanced low power modes for optimal power savings

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC24F04KA201-I/SS information

Microchip PIC24F04KA201-I/SS technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24F04KA201-I/SS.

  • Type
  • Parameter
  • ADC Resolution (bits)
  • 10
  • ADC Sampling Rate (ksps)
  • 500
  • ADC Modules Min MB (megabyte)
  • 1
  • CAN/CAN-FD
  • 0
  • Type of CAN module Max A (ampere)
  • None
  • Configurable Logic Cell (CLC/CCL)
  • 0
  • CPU
  • 16-bit PIC MCU
  • CPU Speed (MIPS/DMIPS)
  • 16
  • Number of Comparators
  • 2
  • DAC Resolution (Bits)
  • 0
  • DAC Outputs
  • 0
  • Number of DACs
  • 0
  • Hardware RTCC/RTC
  • No
  • Number of PWM Time Bases
  • 1
  • Operation Voltage Max.(V)
  • 3.6
  • Operation Voltage Min.(V)
  • 1.8
  • Output Compare Channels
  • 1
  • SMPS
  • 0
  • Segmented LCD (# of segments)
  • 0
  • USB
  • None
  • Program Memory Size (KB)
  • 4
  • Peripheral Pin Select / Pin Muxing
  • No
  • Direct Memory Access (DMA) Channels
  • 0
  • Multiple Flash Panels
  • 0
  • Motor Control PWM Outputs
  • 0
  • Quadrature Encoder Interface
  • 0
  • Low Power
  • Yes
  • ADC Channels
  • 9
  • Pincount
  • 20
  • Crypto Engine
  • No
  • TempRange Min
  • -40
  • TempRange Max
  • 125

Download datasheets and manufacturer documentation for Microchip PIC24F04KA201-I/SS.

Brochures:

Data Sheets:

Errata:

Programming Specifications:

Supporting Collateral:

Application Notes:

Legacy Collaterals:

User Guide:

Reference Manual:

16-bit Microcontroller featuring XLP for eXtreme Low Power consumption. Designed for power constrained and battery powered applications. Features unique peripherals like deep sleep mode DSBOR, DSWDT and RTCC for industry leading low power performance.

    Typical nanoWatt XLP specifications include:
  • 20nA Deep Sleep mode
  • 25nA Sleep mode (RAM retention)
  • 500nA Real Time Clock & Calendar operation in Sleep modes
  • 400nA Watch Dog Timer operation in Sleep modes
  • 512 Bytes of Data EEPROM
    Other Low Power Specifications include:
  • 5uS wake-up from Sleep
  • 50nA I/O port leakage
  • 195uA at 1MHz Run mode
  • Power Modes: Run, Doze, Idle, Sleep, Deep Sleep
  • System Supervisors: Low Power BOR, WDT, INT0 and RTCC
  • Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
  • Fail-Safe Clock Monitor – allows safe shutdown if clock fails
    CPU:
  • Up to 16 MIPS performance
  • Single Cycle Instruction Execution
  • 16 x 16 Hardware Multiply, & 32-bit x 16-bit Hardware Divider
  • C Compiler Optimized Instruction Set System
    Peripherals:
  • 10-bit Differential ADC, 9 channels, 500k samples per second, 16-deep result buffer
  • Charge Time Measurement Unit (CTMU) enabling 9 channels of Capacitive Touch
  • Two Analog rail-to-rail comparators Peripherals
  • 2 UART Modules with LIN and IrDA support, 4 Deep FIFO
  • SPI Modules with 8 Deep FIFO
  • I2C™ Modules with Master and Slave Modes
  • Hardware RTCC, Real-Time Clock Calendar with Alarms
