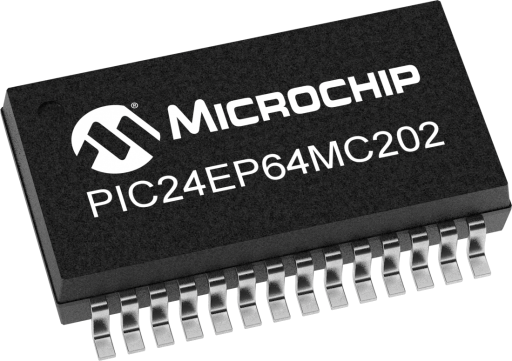

Microchip PIC24EP64MC202-I/SS
Manufacturer No:
PIC24EP64MC202-I/SS
Manufacturer:
Microchip
Package:
28-SSOP (0.209, 5.30mm Width)
Description:
70 MIPS, 64KB Flash, 8KB RAM, 28 pins, Motor Control, OpAmps
Quantity:
In Stock :5108
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
PIC24EP64MC202-I/SS Information
Microchip PIC24EP64MC202-I/SS technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC24EP64MC202-I/SS.
- Type
- Parameter
- CPU Type
- 16-bit PIC MCU
- CPU Speed Max MHz (megahertz)
- 70
- Program Memory Size (KB)
- 64
- Multiple Flash Panels
- False
- Direct Memory Access (DMA) Channels
- 4
- Temp. Range Min.(C°)
- -40
- Temp. Range Max.(C°)
- 125
- Operation Voltage Min.(V)
- 3
- Operation Voltage Max.(V)
- 3.6
- Pin Count
- 28
- Type
- Parameter
- Low Power
- No
- Number of Comparators
- 3
- ADC Modules
- 1
- ADC Channels
- 6
- ADC Resolution Max
- 12
- ADC Sampling Rate (ksps)
- 500
- Number of DACs
- 1
- DAC outputs
- 0
- Max DAC Resolution (bits)
- 4
- Hardware RTCC
- No
Download datasheets and manufacturer documentation for Microchip PIC24EP64MC202-I/SS.
Reference Manual:
Programming Specifications:
Application Notes:
Supporting Collateral:
Data Sheets:
The 70 MIPS PIC24E Motor Control MCUs with enhanced on-chip peripherals enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation, have a great range and extended life. They can be used to control brushless DC, permanent magnet synchronous, AC induction and stepper motors. These devices are also ideal for high-performance general purpose applications.
- Operating Conditions
- 3.0V to 3.6V, -40ºC to +85ºC, DC to 70 MIPS
- 3.0V to 3.6V, -40ºC to +125ºC, DC to 60 MIPS
- PIC24E MCU Core
- Modified Harvard Architecture
- C Compiler Optimized Instruction Set
- 16-bit Wide Data Path
- 24-bit Wide Instructions
- 16x16 Integer Multiply Operations
- 32/16 and 16/16 Integer Divide Operations
- High-Speed PWM
- Up to three PWM pairs with independent timing
- Dead time for rising and falling edges
- 7.14 ns PWM resolution
- PWM support for Inverters, PFC, Lighting, BLDC, PMSM, ACIM, SRM
- Programmable Fault inputs
- Flexible trigger configurations for ADC conversions
- Advanced Analog Features
- ADC module Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H
- Up to three Op amp/Comparators
- Op Amp direct connection to the ADC module
- Additional dedicated comparator
- Programmable references with 32 voltage points for comparators
- Charge Time Measurement Unit (CTMU) Supports mTouch™ capacitive touch sensing
- Timers/Output Compare/Input Capture
- 12 general purpose timers
- Five 16-bit and up to two 32-bit timers/counters
- Four OC modules configurable as timers/counters
- Four IC modules
- Peripheral Trigger Generator (PTG) for scheduling complex sequences
- PTG module with two configurable timers/counters
- 32-bit Quadrature Encoder Interface (QEI) module configurable as a timer/counter
- Communication Interfaces
- Two UART modules (15 Mbps)
- Two 4-wire SPI modules (15 Mbps)
- Two I2C™ modules (up to 1 Mbaud) with SMBus support
- PPS to allow function remap
- Programmable Cyclic Redundancy Check (CRC)
- Direct Memory Access (DMA)
- 4-channel DMA with user-selectable priority arbitration
- UART, SPI, ADC, IC, OC, and Timers
