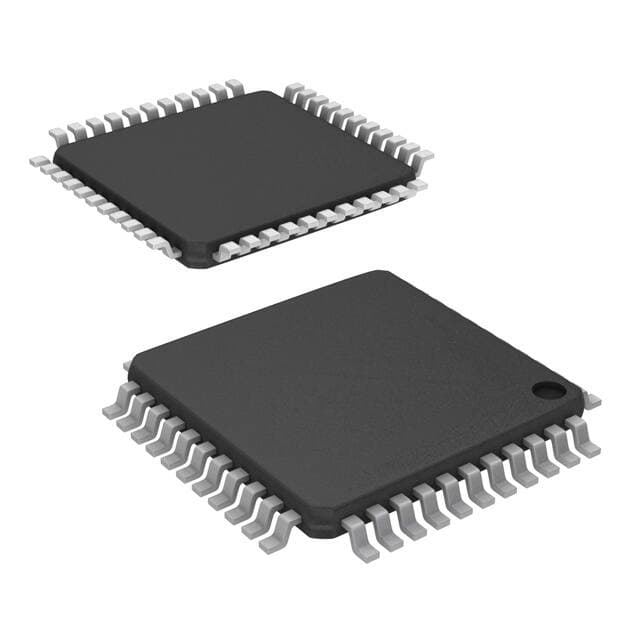

Microchip PIC18LF47K42-E/PT

Manufacturer No:

PIC18LF47K42-E/PT

Manufacturer:

Microchip

Package:

44-TQFP

Description:

128KB 64K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18K Series PIC18LF47K42 3V 44-TQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC18LF47K42-E/PT information

Microchip PIC18LF47K42-E/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC18LF47K42-E/PT.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
44-TQFP

Surface Mount
YES

Operating Temperature
-40°C~125°C TA

Packaging
Tray

Series
PIC® XLP™ 18K

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
44

Terminal Finish
Matte Tin (Sn)

HTS Code
8542.31.00.01

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3V

Terminal Pitch
0.8mm

Time@Peak Reflow Temperature-Max (s)
30

Base Part Number
PIC18LF47K42

JESD-30 Code
S-PQFP-G44

Supply Voltage-Max (Vsup)
3.6V

Supply Voltage-Min (Vsup)
1.8V

Number of I/O
36

Speed
64MHz

RAM Size
8K x 8

Voltage - Supply (Vcc/Vdd)
1.8V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
PIC

Peripherals
Brown-out Detect/Reset, DMA, HLVD, POR, PWM, WDT

Clock Frequency
64MHz

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
128KB 64K x 16

Connectivity
I2C, LINbus, SPI, UART/USART

Supply Current-Max
18mA

Bit Size
8

Data Converter
A/D 35x12b; D/A 1x5b

Has ADC
YES

DMA Channels
YES

PWM Channels
YES

DAC Channels
YES

EEPROM Size
1K x 8

On Chip Program ROM Width
16

Boundary Scan
NO

Low Power Mode
YES

Download datasheets and manufacturer documentation for Microchip PIC18LF47K42-E/PT.

PIC18LF47K42-E/PT Overview

A 44-TQFP package is included. In total, it has 36 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 8-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~125°C TA. PIC® XLP™ 18K series components belong to this electrical component. Its program memory size is 128KB 64K x 16. There is a PIC Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 44 terminations in total. The part works on a 8-bit basis. An output voltage of 3V volts is available for this Microcontroller chip. The Microcontroller chip has YES DMA channels. PIC18LF47K42 is the base part number that you can use to find alternatives. In order for the device to work with the motor, it utilizes the PWM channel YES. In order for it to function, it needs to have a clock frequency of 64MHz. There are 2 serial I/Os on the IC part. MCU chip is included in the part that 3 external interrupts are available. 7 bits are found on a MCU chip.

PIC18LF47K42-E/PT Features

44-TQFP package
Mounting type of Surface Mount

PIC18LF47K42-E/PT Applications

There are a lot of Microchip Technology
PIC18LF47K42-E/PT Microcontroller applications.

Calculator
Kindle
Christmas lights
3D printers
Washing machine
Microwave ovens
Home appliances
Home video and audio
Entertainment products
Digital cameras
