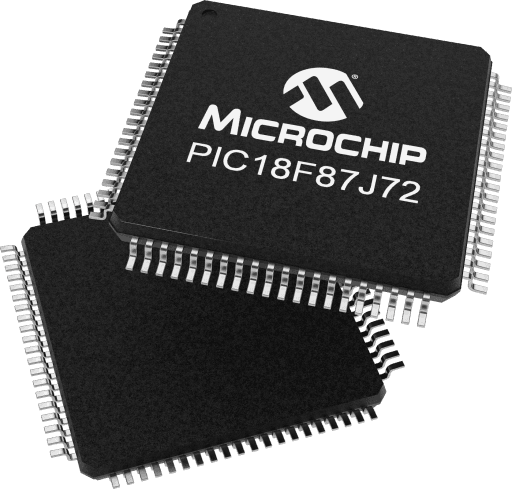

Microchip PIC18F87J72-I/PT

Manufacturer No:

PIC18F87J72-I/PT

Manufacturer:

Microchip

Package:

80-TQFP

Description:

16-/24-bit \u0026 12-bit ADCs, PGA, LCD, 128KB Flash, 4KB RAM, RTCC, CTMU

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC18F87J72-I/PT information

Microchip PIC18F87J72-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC18F87J72-I/PT.

Type
Parameter

Program Memory Size (KB)
128

RAM
3923

Data EEPROM (bytes)
0

Pin Count
80

Operation Voltage Max.(V)
3.6

Operation Voltage Min.(V)
2

ADC Resolution Max
16

ADC Channels
2

Zero Cross Detect
False

Number of Comparators
2

Stand alone PWM
0

Low Power
No

Numerically Controlled Oscillator (NCO)
0

Data Signal Modulator (DSM)
0

Download datasheets and manufacturer documentation for Microchip PIC18F87J72-I/PT.

Energy Meter/Monitor microcontroller with dual-channel 16-/24-bit Analog Front End, 12-bit 12-channel SAR ADC, 132-pixel LCD, 128KB Flash, 4KB RAM, HW RTCC and CTMU module in 80-pin TQFP packge. These devices are ideal for Multi-function Single-Phase Smart Meters and Energy Monitors.

Dual-channel 16-/24-bit Analog Front End (AFE) with Delta-Sigma A/D Converters and high-gain PGAs for 90 dB SINAD and -101 dBc THD (to 35th harmonic) performance
12-bit, 12-channel, 100ksps SAR A/D Converter
LCD driver for up to 132 pixels with voltage boost regulator
Hardware Real-Time Clock & Calendar
Charge Time Measurement Unit (CTMU)for temperature sensing and capacitive touch
Two Analog Comparators
Two UARTs
One Master Synchronous Serial Port (MSSP) support SPI™ and I2C™
Four Timers
Two Capture/Compare/PWM (CCP)
Up to 12 MIPS performance
Internal oscillator support 31kHz to 8MHz and 4xPLL
8x8 Single Cycle Hardware Multiply
nanoWatt low power with Run, Idle and Sleep modes
Brown-Out-Reset (BOR)
Low Voltage Detect (LVD)
Operating Voltage Range: 2.0 to 3.6V for Digital and 12-bit ADC; 4.5 to 5.5V for 16-/24-bit Analog Front End (AFE)
