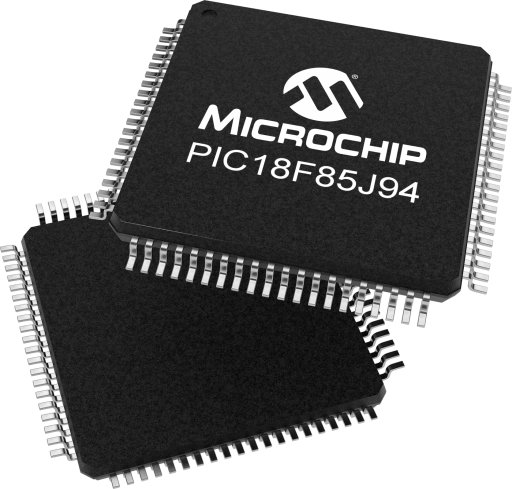

Microchip PIC18F85J94-I/PT

Manufacturer No:

PIC18F85J94-I/PT

Manufacturer:

Microchip

Package:

80-TQFP

Description:

80 pins, 32KB Flash, 4KB RAM, 16MIPS, nanoWatt XLP, LCD, USB

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC18F85J94-I/PT information

Microchip PIC18F85J94-I/PT technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC18F85J94-I/PT.

Type
Parameter

Program Memory Size (KB)
32

RAM
3862

Data EEPROM (bytes)
0

Pin Count
80

Operation Voltage Max.(V)
3.6

Operation Voltage Min.(V)
2

ADC Resolution Max
12

ADC Channels
24

Zero Cross Detect
No

Number of Comparators
3

Stand alone PWM
0

Low Power
Yes

Numerically Controlled Oscillator (NCO)
0

Data Signal Modulator (DSM)
0

Download datasheets and manufacturer documentation for Microchip PIC18F85J94-I/PT.

The PIC18F85J94 8-bit microcontroller offers USB and segmented LCD (upto 368 segments) with nanoWatt XLP technology in the same device. With upto 100 pin and 128K flash devices in the family, which is the first on a 8-bit PIC® MCU, this family has a rich peripheral set like CTMU, hardware RTCC, 12 bit A/D, along with the standard ones. With the support of Vbat mode, for battery based applications, they are best suited for applications like, hand held devices, data loggers, medical applications etc

• nanoWatt XLP technology • Deep sleep current is 60 nA typical • WDT : 650 nA @ 2V typical • RTCC: 650 nA @ 32 Khz, 2V typical • Vbat allows lowest power consumption on back up battery • Multiple, Switchable Clock Modes for Optimum Performance and Power Management • USB 2.0 full speed compliant with on chip transceiver • 368 segments of LCD display. • 46 X 8 commons • Drives LCD panel in Sleep mode • Internal charge pump for LCD • 64Mhz and upto 16 MIPS performance • Four 16 bit timers/counters • Seven Capture/Compare/PWM (CCP) • Three Enhanced Capture/Compare/PWM (ECCP) • Two Master Synchronous Serial Port (MSSP) feature SPI and I2C • Four UART with IrDA • 10/12 bit ADC with 24 channel resolution • Three Rail-to-Rail Enhanced Analog Comparators • Charge Time Measurement Unit (CTMU) for touch and measurements • Operating voltage 2.0V – 3.6V
