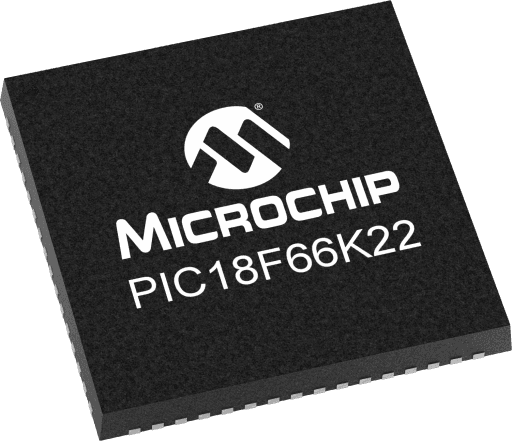

Microchip PIC18F66K22-I/MR

Manufacturer No:

PIC18F66K22-I/MR

Manufacturer:

Microchip

Package:

64-VFQFN Exposed Pad

Description:

64kB Flash, 4kB RAM, 1kB EE, nanoWatt XLP, GP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC18F66K22-I/MR information

Microchip PIC18F66K22-I/MR technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC18F66K22-I/MR.

Type
Parameter

Program Memory Size (KB)
64

RAM
3862

Data EEPROM (bytes)
1024

Pin Count
64

Operation Voltage Max.(V)
5.5

Operation Voltage Min.(V)
1.8

ADC Resolution Max
12

ADC Channels
16

Zero Cross Detect
False

Number of Comparators
3

Stand alone PWM
0

Low Power
Yes

Numerically Controlled Oscillator (NCO)
0

Data Signal Modulator (DSM)
0

Download datasheets and manufacturer documentation for Microchip PIC18F66K22-I/MR.

Featuring nanoWatt XLP Technology, this 8-bit microcontroller is well suited for power-constrained and battery-powered applications. The Charge Time Measurement Unit (CTMU) simplifies the design of capacitive touch applications and can enable other applications requiring precise time and/or temperature measurement. Robust features such as wide operating voltage and temperature ranges and high endurance flash program and data EEPROM make this an excellent microcontroller for rugged automotive and industrial applications. Additional peripherals, such as a 12-bit A/D converter, 3 comparators H/W RTCC, 10 total CCP/ECCP channels, 11 total timers and 53 general purpose I/O, give this cost-effective microcontroller seemingly limitless possibilities in a variety of applications where high performance with low cost is required.

nanoWatt XLP technology for low sleep, RTCC, LCD and WDT currents
Low-Power BOR
Ultra Low-Power Wake-Up
Fast Wake-Up
Low Input Leakage Currents
Up to 16 MIPS Performance
Operating Speed up to 64 MHz
Operating Voltage Range: 1.8 to 5.5V
8 X 8 Single-Cycle Hardware Multiplier
Three Internal Oscillators: 31 kHz, 500 kHz, 16 MHz
Charge Time Measurement Unit for mTouch Sensing
A/D Converter
12-bit Resolution
16 Channels
Ten CCP/ECCP Modules
Eleven 8/16-bit Timer/Counter Modules
Three Analog Comparators
Hardware Real-Time Clock and Calendar (RTCC)
Two Master Synchronous Serial Port Modules
