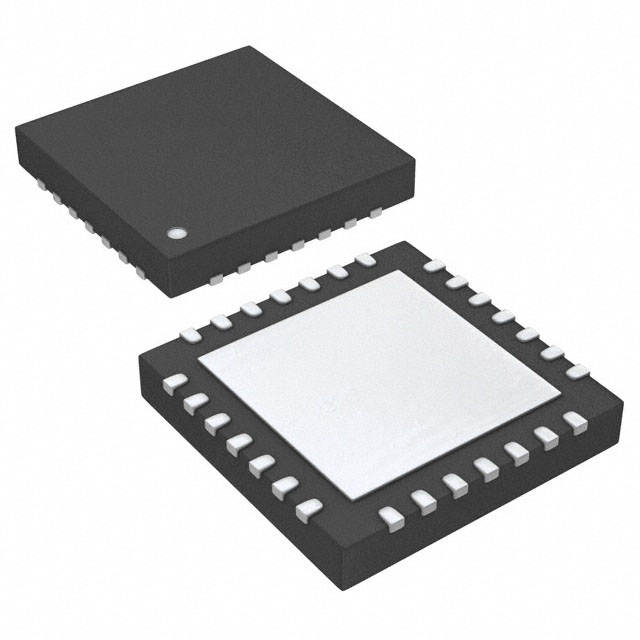

PIC18F24K22T-I/MV Information

Microchip PIC18F24K22T-I/MV technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC18F24K22T-I/MV.

Type
Parameter

Program Memory Size (KB)
16

RAM
768

Data EEPROM (bytes)
256

Pin Count
28

Operation Voltage Max.(V)
5.5

Operation Voltage Min.(V)
1.8

ADC Resolution Max
10

ADC Channels
17

Zero Cross Detect
False

Number of Comparators
2

Type
Parameter

SPI
2

I2C
2

Stand alone PWM
0

Low Power
Yes

Numerically Controlled Oscillator (NCO)
0

Data Signal Modulator (DSM)
0

Download datasheets and manufacturer documentation for Microchip PIC18F24K22T-I/MV.

C Compiler optimized architecture/instruction set
Data EEPROM to 1024 bytes
Linear program memory addressing to 64 Kbytes
Linear data memory addressing to 4 Kbytes
Up to 16 MIPS operation
16-bit wide instructions, 8-bit wide data path
Priority levels for interrupts
31-level, software accessible hardware stack
8 x 8 Single-Cycle Hardware Multiplier
Sleep mode: 100 nA, typical
Watchdog Timer: 500 nA, typical
Timer1 Oscillator: 500 nA @ typical 32 kHz
Factory calibrated to ± 1%
Software selectable frequencies range of 31 kHz to 16 MHz
64 MHz performance available using PLL – no external components required
Four Crystal modes up to 64 MHz
Two external Clock modes up to 64 MHz
4X Phase Lock Loop (PLL)
Secondary oscillator using Timer1 @ 32 kHz
Allows for safe shutdown if peripheral clock stops
Two-Speed Oscillator Start-up
Full 5.5V operation (PIC18F2XK22/4XK22)
Low voltage option available for 1.8V-3.6V operation (PIC18LF2XK22/4XK22)
Self-reprogrammable under software control
Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
Programmable Brown-out Reset (BOR)
Extended Watchdog Timer (WDT) with on-chip oscillator and software enable
Programmable code protection
In-Circuit Serial Programming™ (ICSP™) via two pins
In-Circuit Debug via two pins
10-bit resolution
17 analog input channels (PIC18F/LF2XK22)
28 analog input channels (PIC18F/LF4XK22)
Auto acquisition capability
Conversion available during Sleep
Programmable High/Low Voltage Detection (PLVD) module
Up to 28 channels for button, sensor or slider input
Two rail-to-rail analog comparators
Comparator inputs and outputs externally accessible and configurable
Programmable On-chip Voltage Reference (CVREF) module (% of VDD)
Selectable on-chip fixed voltage reference
High current sink/source 25 mA/25 mA
Individually programmable weak pull-ups
Individually programmable interrupt-on-pin change
Three external interrupt pins
Up to four 16-bit timers/counters with prescaler
Up to three 8-bit timers/counters
Dedicated, low-power Timer1 oscillator
Up to two Capture/Compare/PWM (CCP) modules
Up to three Enhanced Capture/Compare/PWM
One, two or four PWM outputs
Selectable polarity
Programmable dead time
Auto-shutdown and Auto-restart
PWM output steering control
3-wire SPI (supports all 4 SPI modes)
I2C™ Master and Slave modes (Slave mode with address masking)
Supports RS-232, RS-485 and LIN 2.0
Auto-Baud Detect
Auto Wake-up on Start bit
