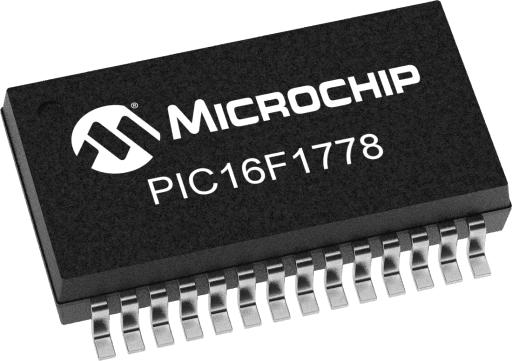

Microchip PIC16F1778-E/MX
Microchip PIC16F1778-E/MXMicrochip PIC16F1778-E/MXMicrochip PIC16F1778-E/MXMicrochip PIC16F1778-E/MX

Microchip PIC16F1778-E/MX

Manufacturer No:

PIC16F1778-E/MX

Manufacturer:

Microchip

Package:

28-UQFN Exposed Pad

Description:

28KB Flash, 2KB RAM, HEF, HS Comp, 10b/5b DAC, 10b ADC, OpAmp, 10/16b PWMs, CCP, COG, DSM, CLC, ZCD, PRG, 100mA I/Os, PPS, EUSART, MSSP

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PIC16F1778-E/MX information

Microchip PIC16F1778-E/MX technical specifications, attributes, parameters and parts with similar specifications to Microchip PIC16F1778-E/MX.

  • Type
  • Parameter
  • Program Memory Size (KB)
  • 28
  • RAM
  • 2048
  • Data EEPROM (bytes)
  • 0
  • Pin Count
  • 28
  • Operation Voltage Max.(V)
  • 5.5
  • Operation Voltage Min.(V)
  • 1.8
  • ADC Resolution Max
  • 10
  • ADC Channels
  • 17
  • Zero Cross Detect
  • True
  • Number of Comparators
  • 6
  • SPI
  • 1
  • I2C
  • 1
  • Stand alone PWM
  • 6
  • Low Power
  • Yes
  • Numerically Controlled Oscillator (NCO)
  • 0
  • Data Signal Modulator (DSM)
  • 3

Download datasheets and manufacturer documentation for Microchip PIC16F1778-E/MX.

Errata:

Supporting Collateral:

Application Notes:

Programming Specifications:

Brochures:

Data Sheets:

PIC16(L)F177X microcontrollers feature a high level of integration of Intelligent Analog and digital peripherals for a wide range of applications, such as lighting, power supplies, battery charging, motor control and other general purpose applications. These devices deliver multiple Op Amps, 5-/10-bit DACs, High-Speed Comparators, 10-bit ADC, 10-/16-bit PWMs, Programmable Ramp Generator (PRG) and other peripherals that can be connected internally to create closed loop systems without using pins or PCB area. The 10 and 16-bit PWMs, the Digital Signal Modulator (DSM) and tri-state output Op Amp can be used together to create a LED dimming engine. The Peripheral Pin Select (PPS) functionality provides flexibility, eases PCB layout and peripheral utilization by allowing digital peripheral pin mapping to any I/O.

  • Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
  • Flash Program Memory with self read/write capability
  • 128 Bytes of Non-Volatile Data Storage, High-Endurance Flash (HEF)
  • Internal clock speeds from 32MHz to 31kHz
  • 3x Op Amps
  • 3x 10-bit DACs
  • 3x 5-bit DACs
  • 6x High-Speed Comparators
  • 10-bit ADC with 17 channels
  • Zero Cross Detect (ZCD)
  • 3x Programmable Ramp Generator (PRG)
  • 3x 10-bit PWMs
  • 3x 16-bit PWMs
  • 2x 100mA I/Os
  • 3x Capture, Compare, PWM (CCP)
  • 3x Complementary Output Generator (COG)
  • 4x Configurable Logic Controller (CLC)
  • EUSART
  • I2C/SPI
  • Peripheral Pin Select (PPS)
  • 5x 8-bit Timers (TMR0/2/4/6/8)
  • 3x 16-bit Timer (TMR1/3/5)
  • Extended Watchdog Timer (WDT)
  • Enhanced Power-On/Off-Reset
  • Low-Power Brown-Out Reset (LPBOR)
  • Programmable Brown-Out Reset (BOR)
  • In Circuit Serial Programming (ICSP)
  • PIC16F1778 (2.3V – 5.5V)
