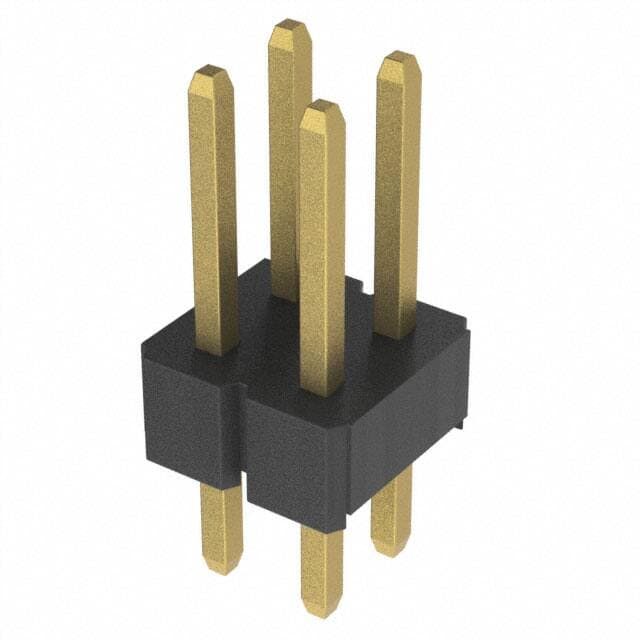

Adam Tech PH2-04-UA

Manufacturer No:

PH2-04-UA

Manufacturer:

Package:

Description:

PH2 Series 2-Row Header Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 4-Position Board to Board 0.098 2.50mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PH2-04-UA information

Adam Tech PH2-04-UA technical specifications, attributes, parameters and parts with similar specifications to Adam Tech PH2-04-UA.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Brass

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
PH2

JESD-609 Code
e4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
4

Number of Rows
2

Voltage - Rated
250VAC

Additional Feature
ROHS COMPLIANT

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A

Insulation Height
0.098 2.50mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL, CSA

Reliability
COMMERCIAL

Row Spacing - Mating
0.100 (2.54mm)

Contact Length - Post
0.120 3.05mm

Shrouding
Unshrouded

Number Of PCB Rows
2

Contact Length - Mating
0.235 5.97mm

PCB Contact Pattern
RECTANGULAR

Body Breadth
0.197 inch

Body Depth
0.098 inch

Overall Contact Length
0.453 11.50mm

Insulation Resistance
5000000000Ohm

Mating Contact Pitch
0.1 inch

Dielectric Withstanding Voltage
1000VAC V

Download datasheets and manufacturer documentation for Adam Tech PH2-04-UA.

Datasheets:

adamtech-ph204ua-datasheets-3815.pdf

adamtech-ph204ua-datasheets-3816.pdf

PH2-04-UA Overview

A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the PH2 Series of products.Additionally, there are other features, such as ROHS COMPLIANT.There is no operating temperature for the device.
