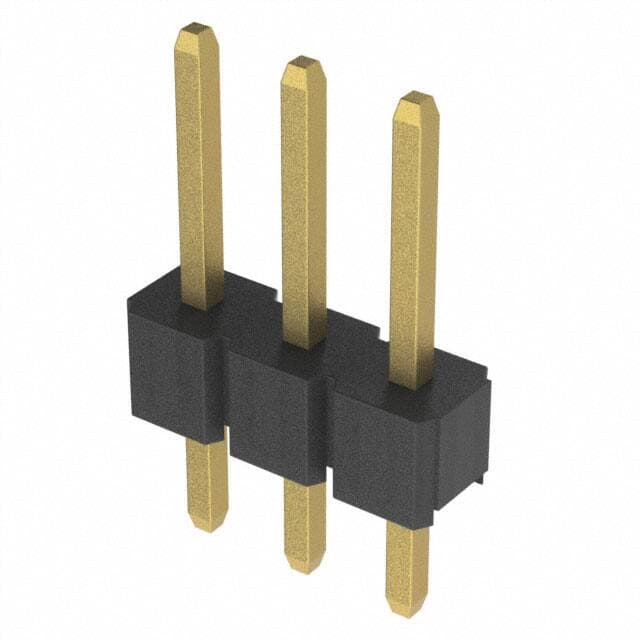

Adam Tech PH1-03-UA

Manufacturer No:

PH1-03-UA

Manufacturer:

Package:

Description:

PH1 Series 1-Row Header Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT), Glass Filled 3-Position Board to Board 0.098 2.50mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PH1-03-UA information

Adam Tech PH1-03-UA technical specifications, attributes, parameters and parts with similar specifications to Adam Tech PH1-03-UA.

Type
Parameter

Factory Lead Time
9 Weeks

Contact Material
Brass

Mounting Type
Through Hole

Contact Shape
Square

Insulation Material
Polybutylene Terephthalate (PBT), Glass Filled

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
PH1

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

Connector Type
Header

Number of Positions
3

Number of Rows
1

Voltage - Rated
250VAC

Additional Feature
ROHS COMPLIANT

Fastening Type
Push-Pull

Contact Finish - Mating
Gold

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Mixed Contacts
NO

Option
GENERAL PURPOSE

Current Rating (Amps)
3A

Terminal Pitch
2.54mm

Insulation Height
0.098 2.50mm

Style
Board to Board

Number of Positions Loaded
All

Pitch - Mating
0.100 2.54mm

Insulation Color
Black

Number of Conductors
ONE

Reference Standard
UL, CSA

Reliability
COMMERCIAL

Contact Length - Post
0.120 3.05mm

Shrouding
Unshrouded

Number Of PCB Rows
1

Contact Length - Mating
0.236 6.00mm

PCB Contact Pattern
RECTANGULAR

Body Breadth
0.098 inch

UL Flammability Code
94V-0

Body Depth
0.098 inch

Overall Contact Length
0.454 11.54mm

Contact Resistance
20mOhm

Insulation Resistance
5000000000Ohm

Download datasheets and manufacturer documentation for Adam Tech PH1-03-UA.

PH1-03-UA Overview

You get it in Header packaging.Mounting type Through Hole is selected for the device.Packaged in a Bulk case.A member of the PH1 Series.Besides that, there's also ROHS COMPLIANT, to name a few.Device runs in -40°C~105°C operating temperature.

PH1-03-UA Features

PH1 series

PH1-03-UA Applications

There are a lot of Adam Tech
PH1-03-UA Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
