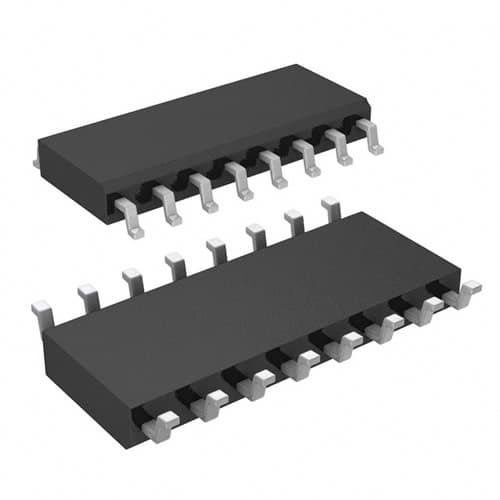

TI PGA205AU/1KG4

Manufacturer No:

PGA205AU/1KG4

Manufacturer:

Package:

SOIC

Description:

1 Channels 5nA 95 dB Instrumentational OP Amps 0.005μA 16 Pins SOIC

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PGA205AU/1KG4 information

TI PGA205AU/1KG4 technical specifications, attributes, parameters and parts with similar specifications to TI PGA205AU/1KG4.

Type
Parameter

Package / Case
SOIC

Surface Mount
YES

Number of Pins
16

Weight
420.395078mg

Packaging
Tape and Reel

JESD-609 Code
e4

Pbfree Code
no

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
16

ECCN Code
EAR99

Resistance
10GOhm

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Instrumentation Amplifier

Technology
BIPOLAR

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
15V

Pin Count
16

Number of Elements
3

Temperature Grade
INDUSTRIAL

Max Supply Voltage
36V

Min Supply Voltage
9V

Nominal Supply Current
7.5mA

Quiescent Current
5.2mA

Slew Rate
0.07 V/μs

Amplifier Type
INSTRUMENTATION AMPLIFIER

Common Mode Rejection Ratio
95 dB

Current - Input Bias
5nA

Input Offset Voltage (Vos)
50μV

Bandwidth
1MHz

Neg Supply Voltage-Nom (Vsup)
-15V

Voltage Gain
18.06dB

Average Bias Current-Max (IIB)
0.005μA

Settling Time
28 μs

Max Dual Supply Voltage
18V

-3db Bandwidth
1MHz

Min Dual Supply Voltage
4.5V

Dual Supply Voltage
15V

Input Offset Current-Max (IIO)
0.000002μA

Input Voltage Noise Density
15nV/sqrt Hz

Voltage Gain-Nom
10

Non-linearity-Max
0.004%

Height Seated (Max)
2.65mm

Download datasheets and manufacturer documentation for TI PGA205AU/1KG4.

PGA205AU/1KG4 Overview

There is a SOIC case in which the instrumentation amplifier is packaged. Buffer amps of this type are called INSTRUMENTATION AMPLIFIER-types. A Tape and Reel case is used to deliver the buffer op amp. The number of terminations is approaching the 16 mark. The total number of pins on linear amplifier is 16. The linear amplifier should be run at 15V at all times, so please keep that in mind when using it. In order to be more specific, this instrumentation amplifier is one of the types of Instrumentation Amplifier devices. 16 pins are included on the operational amplifiers. As far as the input offset voltage is concerned, linear amplifier rates at 50μV. 18.06dB should be the voltage gain. Op amp ic has 1 channels. In order for this buffer op amp to function, it should have a temperature of at least -40°C degrees Celsius. At temperatures greater than 85°C, Instrumentation amplifier should not be used. There are 3 elements in total in this linear amplifier. The electrical part is capable of being powered by a voltage of under 36V, which means that it can be used with any voltage supply. As a rule of thumb, the supply voltage of the op amp should not be lower than 9V. As a general rule, you should conduct this electronic component under dual supply voltages of 18V volts. There is an 5.2mA quiescent current running through op amp ic. 10GOhm is the range in which the op amp resistance should lie.

PGA205AU/1KG4 Features

16 Pins
supply voltage of 15V
18.06dB voltage gain
Resistance of 10GOhm

PGA205AU/1KG4 Applications

There are a lot of Texas Instruments
PGA205AU/1KG4 Instrumentational OP Amps applications.

Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Division circuits
Precision measurement
Power control
