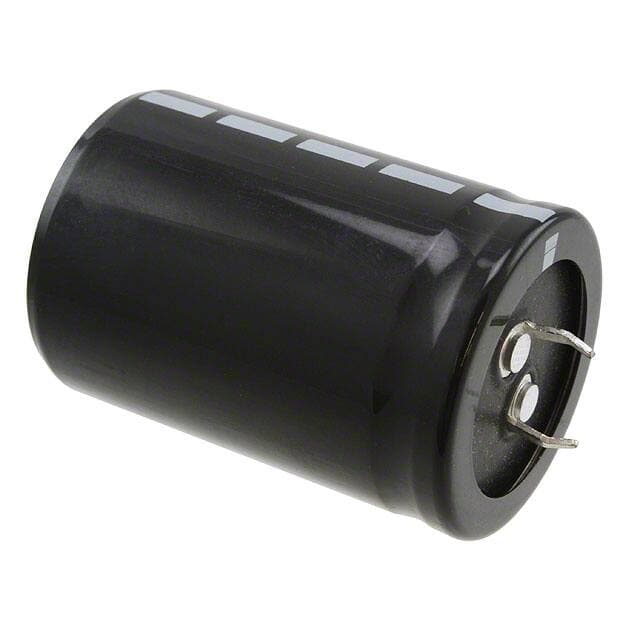

KEMET PEH534YDG3470M2

Manufacturer No:

PEH534YDG3470M2

Manufacturer:

KEMET

Package:

Radial, Can - Snap-In

Description:

PEH534 470?F Capacitor ±20% Bulk Through Hole 1.9A 1.378Dia 35.00mm -40°C~105°C Polar 10mm Radial, Can - Snap-In

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PEH534YDG3470M2 information

KEMET PEH534YDG3470M2 technical specifications, attributes, parameters and parts with similar specifications to KEMET PEH534YDG3470M2.

Type
Parameter

Factory Lead Time
32 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can - Snap-In

Number of Pins
2

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
PEH534

Published
2012

Size / Dimension
1.378Dia 35.00mm

Tolerance
±20%

JESD-609 Code
e3

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Snap in

ECCN Code
EAR99

Resistance
180mOhm

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
470?F

Reference Standard
IEC60384-4

Lead Pitch
10mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
180mOhm @ 100Hz

Lead Spacing
0.394 10.00mm

Lifetime @ Temp
2000 Hrs @ 105°C

Leakage Current
0.635mA

Ripple Current
1.9A

Test Frequency
100Hz

Polarization
Polar

Life (Hours)
4000 hours

Ripple Current @ Low Frequency
1.9A @ 100Hz

Diameter
35mm

Height Seated (Max)
1.969 50.00mm

Length
50mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for KEMET PEH534YDG3470M2.

Datasheets:

kemet-peh534ydg3470m2-datasheets-3025.pdf

PEH534YDG3470M2 Overview

180mOhm @ 100Hz must have the ESR (Equivalent Series Resistance) to function properly.The ripple current at the lowest charge is 1.9A @ 100Hz.Keeping the maximum height of the seated person (Max) below 1.969 50.00mm is recommended.Rated DC voltage is 450V for this capacitor.High efficiency requires an operating temperature of -40°C~105°C.

PEH534YDG3470M2 Features

the ripple current is 1.9A @ 100Hz.
voltage - Rated DC of 450V
an operating temperature of -40°C~105°C

PEH534YDG3470M2 Applications

There are a lot of KEMET
PEH534YDG3470M2 applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
