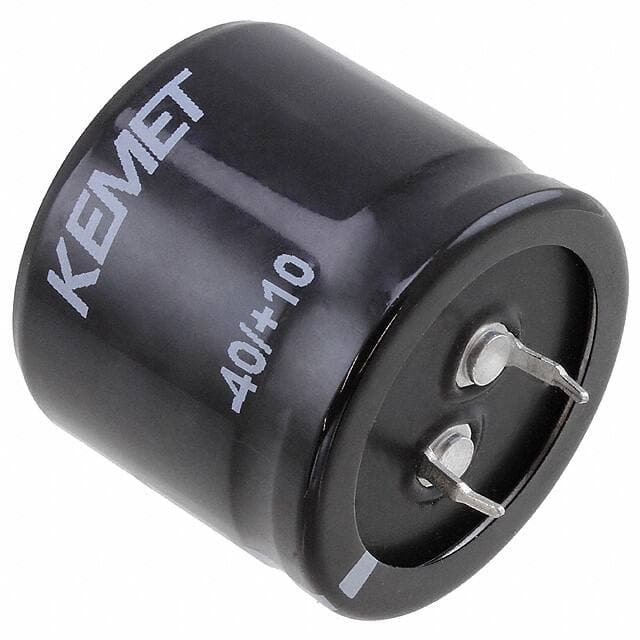

KEMET PEH534VDC3220M2
KEMET PEH534VDC3220M2

KEMET PEH534VDC3220M2

Manufacturer No:

PEH534VDC3220M2

Manufacturer:

KEMET

Package:

Radial, Can - Snap-In

Description:

PEH534 220?F Capacitor ±20% Bulk Through Hole 1.1A 1.378Dia 35.00mm -40°C~105°C Polar 10.0076mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PEH534VDC3220M2 information

KEMET PEH534VDC3220M2 technical specifications, attributes, parameters and parts with similar specifications to KEMET PEH534VDC3220M2.

  • Type
  • Parameter
  • Factory Lead Time
  • 32 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • PEH534
  • Published
  • 2013
  • Size / Dimension
  • 1.378Dia 35.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 220?F
  • Voltage - Rated DC
  • 400V
  • Terminal Pitch
  • 10mm
  • Reference Standard
  • IEC60384-4
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 460mOhm @ 100Hz
  • Lead Spacing
  • 0.394 10.00mm
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 0.264mA
  • Ripple Current
  • 1.1A
  • Test Frequency
  • 120Hz
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Ripple Current @ Low Frequency
  • 1.1A @ 100Hz
  • Diameter
  • 35mm
  • Height
  • 29.9974mm
  • Height Seated (Max)
  • 1.260 32.00mm
  • Length
  • 30mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for KEMET PEH534VDC3220M2.

Datasheets:

PEH534VDC3220M2 Overview


The ESR (Equivalent Series Resistance) of 460mOhm @ 100Hz needs to be provided to fully play its function.As far as the ripple current is concerned, it is 1.1A @ 100Hz at the lowest charge.The height seated (Max) should be kept below 1.260 32.00mm.This capacitor operates from a voltage - Rated DC of 400V.The operating temperature should be maintained at -40°C~105°C for high efficiency.

PEH534VDC3220M2 Features


the ripple current is 1.1A @ 100Hz.
voltage - Rated DC of 400V
an operating temperature of -40°C~105°C


PEH534VDC3220M2 Applications


There are a lot of KEMET
PEH534VDC3220M2 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems

User Guide
