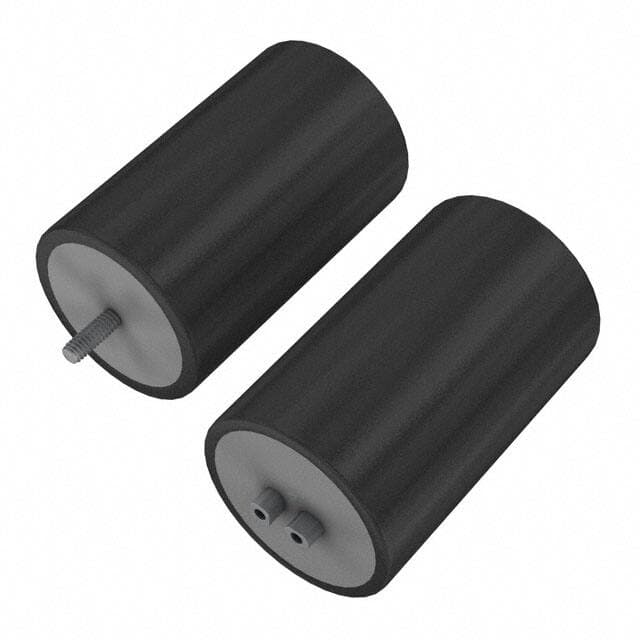

KEMET PEH200PO5220MU2
KEMET PEH200PO5220MU2

KEMET PEH200PO5220MU2

Manufacturer No:

PEH200PO5220MU2

Manufacturer:

KEMET

Package:

Radial, Can - Screw Terminals

Description:

PEH200 22000?F Capacitor ±20% Bulk Chassis Mount 19.3A 2.622Dia 66.60mm -40°C~85°C Polar 28.4988mm Radial, Can - Screw Terminals

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PEH200PO5220MU2 information

KEMET PEH200PO5220MU2 technical specifications, attributes, parameters and parts with similar specifications to KEMET PEH200PO5220MU2.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Chassis Mount, Clamp
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • Radial, Can - Screw Terminals
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • PEH200
  • Published
  • 2006
  • Size / Dimension
  • 2.622Dia 66.60mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Screw
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • Capacitance
  • 22000?F
  • Voltage - Rated DC
  • 100V
  • Terminal Pitch
  • 28.5mm
  • Reference Standard
  • IEC60384-4
  • Lead Pitch
  • 28.4988mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 1.122 28.50mm
  • Voltage
  • 100V
  • Lifetime @ Temp
  • 15000 Hrs @ 85°C
  • Leakage Current
  • 10.6mA
  • Ripple Current
  • 19.3A
  • Polarization
  • Polar
  • Life (Hours)
  • 60000 hours
  • Impedance
  • 18mOhm
  • Ripple Current @ Low Frequency
  • 19.3A @ 100Hz
  • Diameter
  • 65mm
  • Height
  • 105mm
  • Height Seated (Max)
  • 4.213 107.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for KEMET PEH200PO5220MU2.

Datasheets:

PEH200PO5220MU2 Overview


In order to fully utilize 15mOhm @ 100Hz, ESR (Equivalent Series Resistance) needs to be provided.In the lowest charge, the ripple current is 19.3A @ 100Hz.Sitting height should not exceed 4.213 107.00mm (Max).A voltage of 100V DC operates this capacitor.Maintaining -40°C~85°C as the operating temperature will maximize efficiency.

PEH200PO5220MU2 Features


the ripple current is 19.3A @ 100Hz.
voltage - Rated DC of 100V
an operating temperature of -40°C~85°C


PEH200PO5220MU2 Applications


There are a lot of KEMET
PEH200PO5220MU2 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
