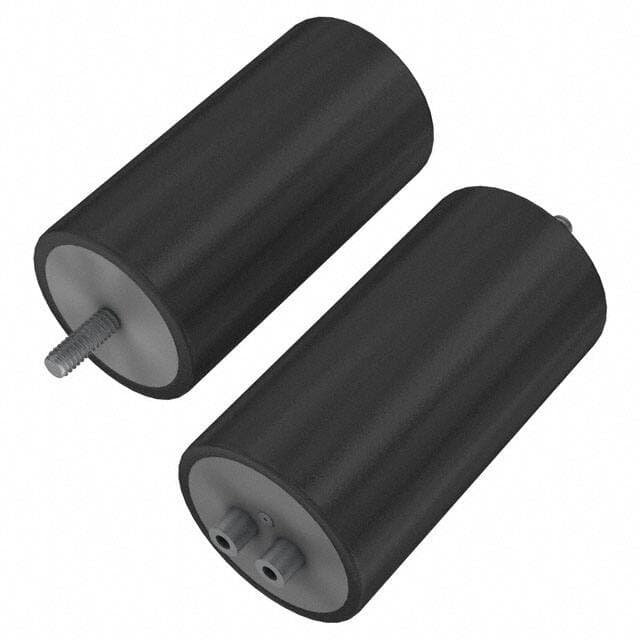

KEMET PEH200MJ5220MB2
KEMET PEH200MJ5220MB2

KEMET PEH200MJ5220MB2

Manufacturer No:

PEH200MJ5220MB2

Manufacturer:

KEMET

Package:

Radial, Can - Screw Terminals

Description:

PEH200 22000?F Capacitor ±20% Bulk Chassis Mount 19A 2.032Dia 51.60mm -40°C~85°C Polar 22mm Radial, Can - Screw Terminals

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PEH200MJ5220MB2 information

KEMET PEH200MJ5220MB2 technical specifications, attributes, parameters and parts with similar specifications to KEMET PEH200MJ5220MB2.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Chassis Mount, Stud
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • Radial, Can - Screw Terminals
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Bulk
  • Series
  • PEH200
  • Published
  • 2006
  • Size / Dimension
  • 2.032Dia 51.60mm
  • Tolerance
  • ±20%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Screw
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • Capacitance
  • 22000?F
  • Voltage - Rated DC
  • 63V
  • Reference Standard
  • IEC60384-4
  • Lead Pitch
  • 22mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 10mOhm @ 100Hz
  • Voltage
  • 63V
  • Lifetime @ Temp
  • 12000 Hrs @ 85°C
  • Leakage Current
  • 4.158mA
  • Ripple Current
  • 19A
  • Test Frequency
  • 100Hz
  • Polarization
  • Polar
  • Life (Hours)
  • 60000 hours
  • Impedance
  • 8mOhm
  • Ripple Current @ Low Frequency
  • 19A @ 100Hz
  • Diameter
  • 50mm
  • Height
  • 95mm
  • Height Seated (Max)
  • 3.799 96.50mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for KEMET PEH200MJ5220MB2.

Datasheets:

PEH200MJ5220MB2 Overview


The ESR (Equivalent Series Resistance) of 10mOhm @ 100Hz needs to be provided to fully play its function.As far as the ripple current is concerned, it is 19A @ 100Hz at the lowest charge.The height seated (Max) should be kept below 3.799 96.50mm.This capacitor operates from a voltage - Rated DC of 63V.The operating temperature should be maintained at -40°C~85°C for high efficiency.

PEH200MJ5220MB2 Features


the ripple current is 19A @ 100Hz.
voltage - Rated DC of 63V
an operating temperature of -40°C~85°C


PEH200MJ5220MB2 Applications


There are a lot of KEMET
PEH200MJ5220MB2 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
