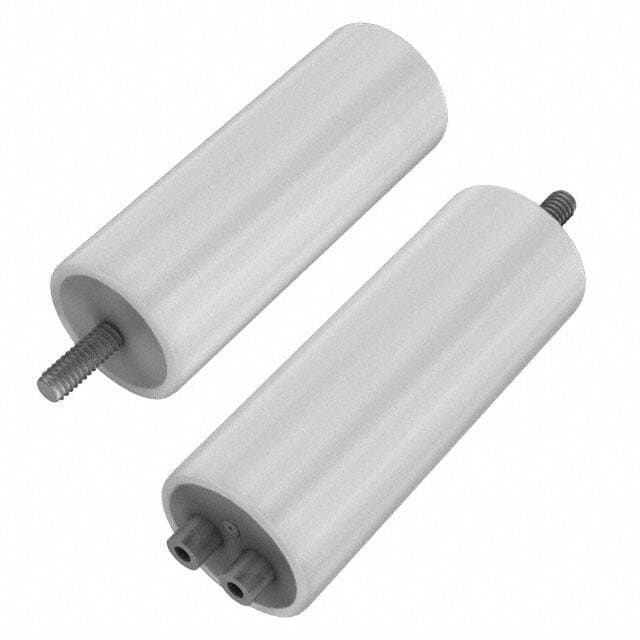

KEMET PEH169MD4470QB2
KEMET PEH169MD4470QB2

KEMET PEH169MD4470QB2

Manufacturer No:

PEH169MD4470QB2

Manufacturer:

KEMET

Package:

Radial, Can - Screw Terminals

Description:

PEH169 4700?F Capacitor -10% +30% Bulk Chassis Mount 6.2A 1.441Dia 36.60mm -40°C~105°C Polar 13.0048mm Radial, Can - Screw Terminals

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PEH169MD4470QB2 information

KEMET PEH169MD4470QB2 technical specifications, attributes, parameters and parts with similar specifications to KEMET PEH169MD4470QB2.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Chassis Mount, Stud
  • Mounting Type
  • Chassis Mount
  • Package / Case
  • Radial, Can - Screw Terminals
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • PEH169
  • Published
  • 2006
  • Size / Dimension
  • 1.441Dia 36.60mm
  • Tolerance
  • -10% +30%
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Screw
  • ECCN Code
  • EAR99
  • Resistance
  • 22mOhm
  • Applications
  • General Purpose
  • Capacitance
  • 4700?F
  • Voltage - Rated DC
  • 63V
  • Terminal Pitch
  • 13mm
  • Lead Pitch
  • 13.0048mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.512 13.00mm
  • Lifetime @ Temp
  • 7000 Hrs @ 105°C
  • Leakage Current
  • 888.3?A
  • Ripple Current
  • 6.2A
  • Test Frequency
  • 100Hz
  • Polarization
  • Polar
  • Life (Hours)
  • 7000 hours
  • Impedance
  • 11mOhm
  • Diameter
  • 36.6mm
  • Height
  • 97.5mm
  • Height Seated (Max)
  • 3.839 97.50mm
  • Length
  • 95mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for KEMET PEH169MD4470QB2.

Datasheets:

PEH169MD4470QB2 Overview


To perform its function fully, 22mOhm @ 100Hz is required to have an equivalent series resistance (ESR).You should keep the height of the seat (Max) below 3.839 97.50mm.Rated DC voltage of 63V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~105°C.

PEH169MD4470QB2 Features


voltage - Rated DC of 63V
an operating temperature of -40°C~105°C


PEH169MD4470QB2 Applications


There are a lot of KEMET
PEH169MD4470QB2 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
