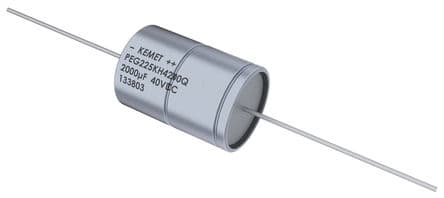

KEMET PEG225KF4120ME1
KEMET PEG225KF4120ME1

KEMET PEG225KF4120ME1

Manufacturer No:

PEG225KF4120ME1

Manufacturer:

KEMET

Package:

Axial, Can

Description:

PEG225 1200?F Capacitor ±20% Bulk Through Hole 4.7A 0.630Diax1.051L 16.00mmx26.70mm -40°C~125°C Polar Axial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PEG225KF4120ME1 information

KEMET PEG225KF4120ME1 technical specifications, attributes, parameters and parts with similar specifications to KEMET PEG225KF4120ME1.

  • Type
  • Parameter
  • Factory Lead Time
  • 52 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Axial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Bulk
  • Series
  • PEG225
  • Published
  • 2006
  • Size / Dimension
  • 0.630Diax1.051L 16.00mmx26.70mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • Not Applicable
  • Number of Terminations
  • 2
  • Termination
  • Axial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Applications
  • Automotive
  • Additional Feature
  • RIPPLE CURRENT WITH HEAT SINK
  • Capacitance
  • 1200?F
  • Reference Standard
  • IEC60384-4
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Length
  • 40mm
  • ESR (Equivalent Series Resistance)
  • 80mOhm @ 100Hz
  • Lead Diameter
  • 800 ?m
  • Voltage
  • 40V
  • Lifetime @ Temp
  • 1500 Hrs @ 150°C
  • Leakage Current
  • 144?A
  • Ripple Current
  • 4.7A
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Ripple Current @ Low Frequency
  • 2.03A @ 100Hz
  • Ripple Current @ High Frequency
  • 5.8A @ 5kHz
  • Diameter
  • 16mm
  • Height
  • 26.5mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Ratings
  • AEC-Q200

Download datasheets and manufacturer documentation for KEMET PEG225KF4120ME1.

Datasheets:

PEG225KF4120ME1 Overview


A full charge means 5.8A @ 5kHz ripple current.A full performance of 80mOhm @ 100Hz requires the ESR (Equivalent Series Resistance).During the lowest charge, ripple current is 2.03A @ 100Hz.The capacitor operates from 40V DC voltage.When operating at -40°C~125°C, high efficiency can be achieved.

PEG225KF4120ME1 Features


the ripple current is 5.8A @ 5kHz.
the ripple current is 2.03A @ 100Hz.
voltage - Rated DC of 40V
an operating temperature of -40°C~125°C


PEG225KF4120ME1 Applications


There are a lot of KEMET
PEG225KF4120ME1 applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
