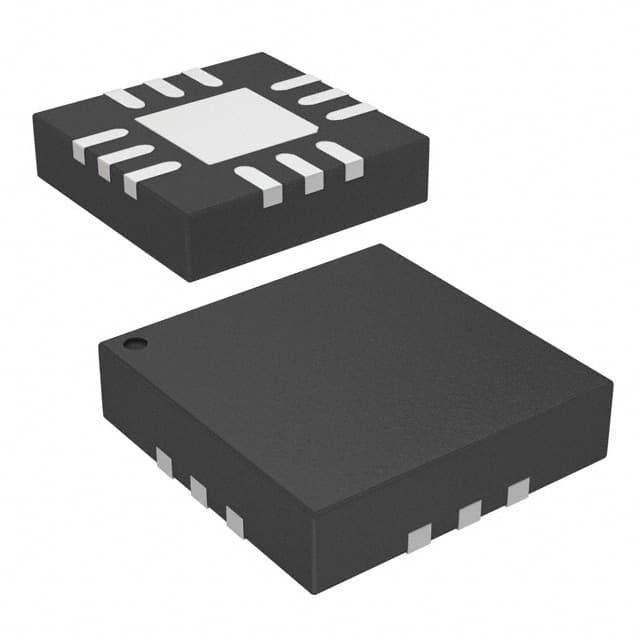

pSemi PE42721MLBA-Z

Manufacturer No:

PE42721MLBA-Z

Manufacturer:

pSemi

Package:

12-WFQFN Exposed Pad

Description:

CATV RF Type SPDT -40°C~85°C 5MHz~2.2GHz Isolation:55dB Insertion Loss:0.65dB Absorptive 75Ohm IIP3:60dBm 2.3V~5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PE42721MLBA-Z information

pSemi PE42721MLBA-Z technical specifications, attributes, parameters and parts with similar specifications to pSemi PE42721MLBA-Z.

Type
Parameter

Factory Lead Time
16 Weeks

Package / Case
12-WFQFN Exposed Pad

Number of Pins
12

Supplier Device Package
12-QFN (3x3)

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
UltraCMOS®, HaRP?

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Voltage - Supply
2.3V~5.5V

Circuit
SPDT

Test Frequency
2.2GHz

Impedance
75Ohm

Throw Configuration
SPDT

Topology
Absorptive

Frequency Range
5MHz~2.2GHz

Insertion Loss
0.65dB

Isolation
55dB

RF Type
CATV

IIP3
60dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for pSemi PE42721MLBA-Z.

Datasheets:

psemi-ek4272102-datasheets-6877.pdf

PE42721MLBA-Z Overview

For optimal performance, this RF Switch makes use of the Tape & Reel (TR) package.The operating temperature should be kept at -40°C~85°C when the RF Switch is in operation.There are 12 pins that are used for the operation of the high power RF switch.As a member of the UltraCMOS®, HaRP? family of RF switchings, this part is prominent in many specifications.CATV RF Type from the RF switch ic.2.3V~5.5V voltage can be supplied by the RF Switch.

PE42721MLBA-Z Features

Tape & Reel (TR) package
12 pins
CATV RF Type

PE42721MLBA-Z Applications

There are a lot of pSemi
PE42721MLBA-Z RF Switches applications.

General-purpose RF switching
Dual-band applications
High speed filter selection
Digital transceiver front end switch
IF switching
Tuner modules
Antenna diversity switching
Cellular/PCS Base Stations
ISM
Wireless Local Loop
