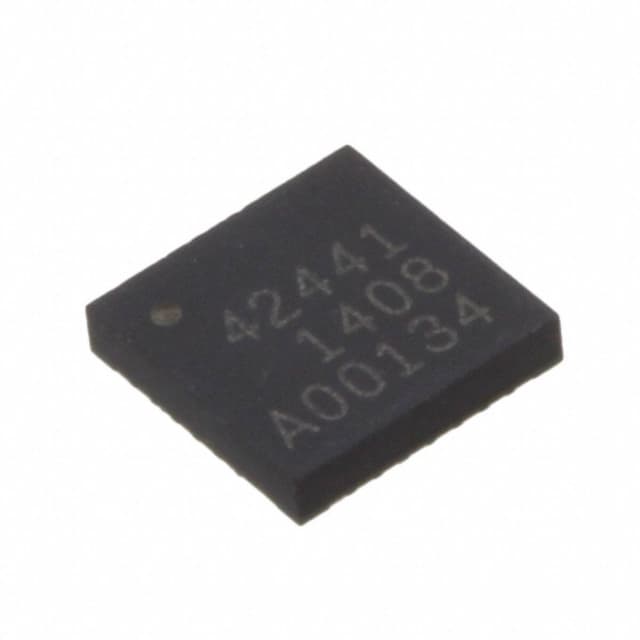

pSemi PE42441C-Z

Manufacturer No:

PE42441C-Z

Manufacturer:

pSemi

Package:

LGA-32

Description:

Diversity Switch,

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PE42441C-Z information

pSemi PE42441C-Z technical specifications, attributes, parameters and parts with similar specifications to pSemi PE42441C-Z.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
PSEMI CORP

Package Description
LGA-32

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.50.70.00

Date Of Intro
2018-10-09

Additional Feature
HIGH LINEARITY AND ISOLATION

Characteristic Impedance
50 Ω

Construction
COMPONENT

Input Power-Max (CW)
20 dBm

Insertion Loss-Max
1.6 dB

Isolation-Min
21 dB

Mounting Feature
SURFACE MOUNT

Number of Functions
1

Number of Terminals
32

On Time-Nom
5 µs

Operating Frequency-Max
8000 MHz

Operating Frequency-Min
10 MHz

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Equivalence Code
LCC32,.2SQ,20

Port Termination
ABSORPTIVE

RF/Microwave Device Type
SP4T

Screening Level
MIL-STD-883

Supply Current-Max
0.16 mA

Surface Mount
YES

Technology
CMOS

VSWR-Max
1.1

Download datasheets and manufacturer documentation for pSemi PE42441C-Z.

Datasheets:

psemi-ek4244103-datasheets-2486.pdf

PE42441C-Z Overview

It uses the Tape & Reel (TR) package in order to optimize the performance of this RF Switch.RF Switchs should be operated at -40°C~85°C temperature while operating.As the name implies, this RF switching belongs to the UltraCMOS® family of RF switchings, and it is a type of RF switching.WLAN RF switch ic type.There is 3V~3.55V voltage limit on the RF Switch.

PE42441C-Z Features

Tape & Reel (TR) package
WLAN RF Type

PE42441C-Z Applications

There are a lot of pSemi
PE42441C-Z RF Switches applications.

High speed filter selection
Digital transceiver front end switch
IF switching
Tuner modules
Antenna diversity switching
Cellular/PCS Base Stations
ISM
Wireless Local Loop
Smartphones
Tablets
