pSemi PE42424A-Z

Manufacturer No:

PE42424A-Z

Manufacturer:

pSemi

Package:

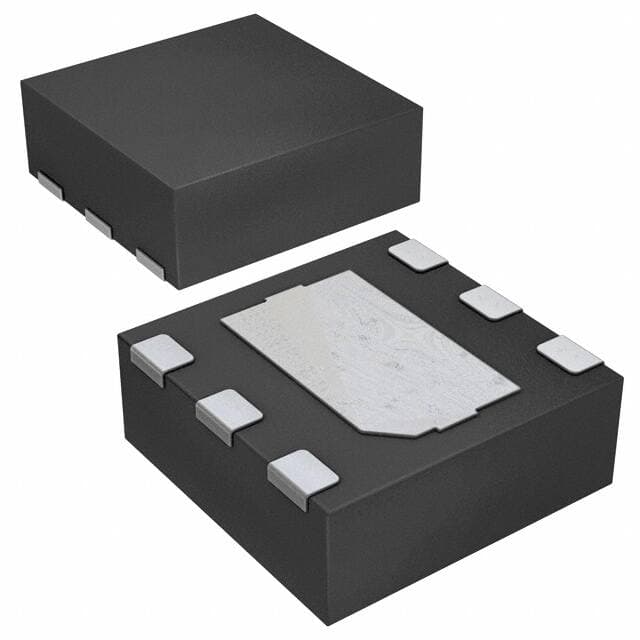

6-UFDFN Exposed Pad

Description:

802.11a/b/g/n/ac RF Type SPDT -40°C~105°C 100MHz~6GHz Isolation:48dB Insertion Loss:0.8dB Reflective 50Ohm IIP3:61dBm 2.3V~5.5V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PE42424A-Z information

pSemi PE42424A-Z technical specifications, attributes, parameters and parts with similar specifications to pSemi PE42424A-Z.

Type
Parameter

Factory Lead Time
16 Weeks

Package / Case
6-UFDFN Exposed Pad

Supplier Device Package
6-DFN (1.5x1.5)

Operating Temperature
-40°C~105°C

Packaging
Tape & Reel (TR)

Series
UltraCMOS®

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
105°C

Min Operating Temperature
-40°C

Voltage - Supply
2.3V~5.5V

Circuit
SPDT

Test Frequency
2.4GHz 2.5GHz

Impedance
50Ohm

Throw Configuration
SPDT

Topology
Reflective

Frequency Range
100MHz~6GHz

Insertion Loss
0.8dB

Isolation
48dB

RF Type
802.11a/b/g/n/ac

P1dB
41dBm

IIP3
61dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for pSemi PE42424A-Z.

Datasheets:

psemi-ek4242401-datasheets-5880.pdf

ReachStatement:

murata-gcm2165c1h271ga16j-reachstatement-6228.pdf

PE42424A-Z Overview

For optimal performance, this RF Switch makes use of the Tape & Reel (TR) package.The operating temperature should be kept at -40°C~105°C when the RF Switch is in operation.As a member of the UltraCMOS® family of RF switchings, this part is prominent in many specifications.802.11a/b/g/n/ac RF Type from the RF switch ic.2.3V~5.5V voltage can be supplied by the RF Switch.

PE42424A-Z Features

Tape & Reel (TR) package
802.11a/b/g/n/ac RF Type

PE42424A-Z Applications

There are a lot of pSemi
PE42424A-Z RF Switches applications.

General-purpose RF switching
Dual-band applications
High speed filter selection
Digital transceiver front end switch
IF switching
Tuner modules
Antenna diversity switching
Cellular/PCS Base Stations
ISM
Wireless Local Loop
