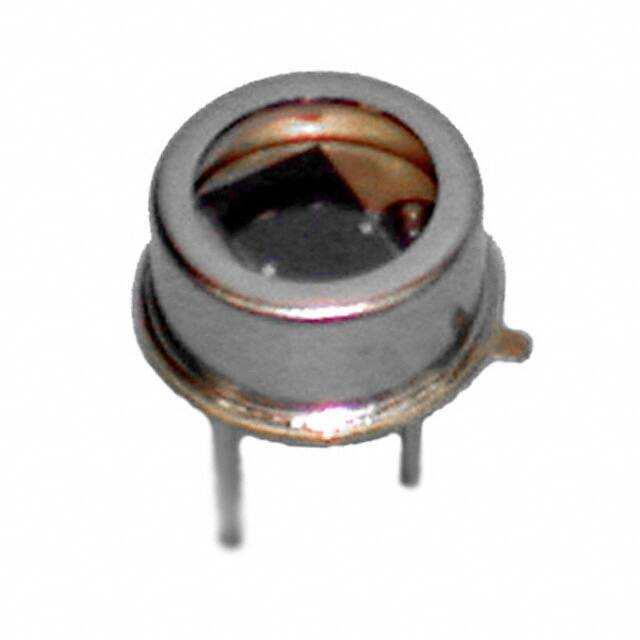

Advanced Photonix PDU-V114

Manufacturer No:

PDU-V114

Manufacturer:

Advanced Photonix

Package:

TO-5 Variant, 2 Leads, Lens Top Metal Can

Description:

Through Hole -40°C~125°C Bulk Wavelength: 950nm TO-5 Variant, 2 Leads, Lens Top Metal Can 75V 3.15mm H x 5.69mm W 13ns 10pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDU-V114 information

Advanced Photonix PDU-V114 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDU-V114.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
TO-5 Variant, 2 Leads, Lens Top Metal Can

Housing Material
Metal

Operating Temperature
-40°C~125°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Diode Type
PIN

Viewing Angle
63°

Response Time
13ns

Voltage - DC Reverse (Vr) (Max)
75V

Breakdown Voltage
10V

Rise Time
900ns

Max Reverse Voltage (DC)
75V

Wavelength
950nm

Dark Current
10pA

Spectral Range
350nm ~ 1100nm

Active Area
3.15mm H x 5.69mm W

Current - Dark (Typ)
10pA

Responsivity @ nm
0.09 A/W @ 254nm

Height
4.26mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDU-V114.

Datasheets:

advancedphotonix-pduv114-datasheets-5788.pdf

PDU-V114 Overview

These photodiodes are packaged in the Bulk to protect them from damage. The photodiodes are put into TO-5 Variant, 2 Leads, Lens Top Metal Can packages for safety protection. In reverse-bias mode on a continual basis, the maximum amount of voltage the photodiodes can withstand is 75V. The voltage for the photodiodes should not exceed 75V in reverse-bias mode on a continual basis. The temperature should not be higher than 125°C when photodiodes operate. But the minimum operating temperature for the photodiodes should be set to -40°C. The breakdown voltage should be 10V to ensure photodiodes work. Even in the absence of light input, a photodiode occurs 10pA current.

PDU-V114 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~125°C
Packaging: Bulk
Diode Type: PIN
Spectral Range: 350nm ~ 1100nm
Response Time: 13ns
Viewing Angle: 63°
Responsivity @ nm: 0.09 A/W @ 254nm

PDU-V114 Applications

There are a lot of Advanced Photonix
PDU-V114 Photodiodes applications.

High speed photo detector
Infrared remote control
Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
