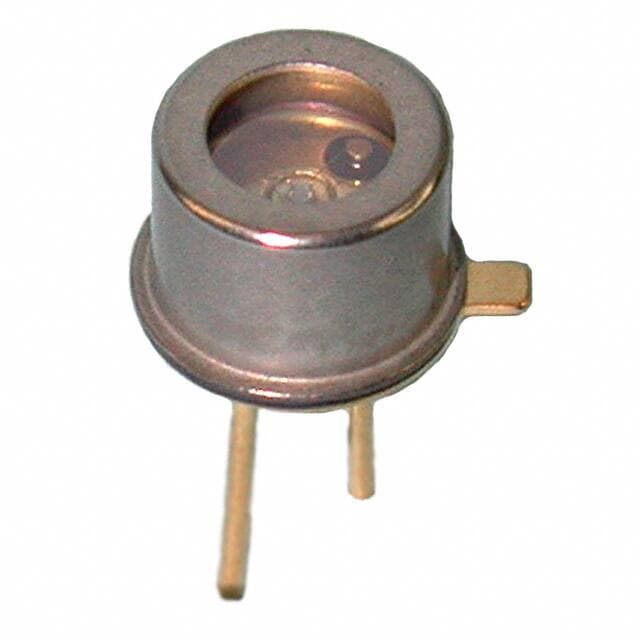

Advanced Photonix PDU-G101A

Manufacturer No:

PDU-G101A

Manufacturer:

Advanced Photonix

Package:

TO-46-2

Description:

Through Hole -30°C~85°C Tray Wavelength: 280 nm TO-46-2 5V 0.076mm2 10ns 50pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDU-G101A information

Advanced Photonix PDU-G101A technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDU-G101A.

Type
Parameter

Mounting Type
Through Hole

Package / Case
TO-46-2

Operating Temperature
-30°C~85°C

Packaging
Tray

Published
2007

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-30°C

Viewing Angle
61°

Response Time
10ns

Voltage - DC Reverse (Vr) (Max)
5V

Rise Time
10ns

Max Reverse Voltage (DC)
5V

Wavelength
280 nm

Dark Current
50pA

Spectral Range
200nm ~ 365nm

Active Area
0.076mm2

Current - Dark (Typ)
50pA

Responsivity @ nm
0.1 A/W @ 350nm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDU-G101A.

Datasheets:

advancedphotonix-pdug101a-datasheets-0306.pdf

advancedphotonix-pdug101a-datasheets-6949.pdf

PDU-G101A Overview

Photodiodes are enclosed in Tray to prevent damage. Photodiodes are packaged in TO-46-2 packages in order to ensure their safety. Continuous reverse-bias means the photodiodes can withstand only 5V voltage. When reverse-biased, the photodiodes should not continually exceed 5V. As a rule of thumb, when photodiodes are operating, the temperature should not exceed 85°C. The minimum operating temperature for the photodiodes, however, should be set to -30°C. There is 50pA current flowing through a photodiode even in the absence of light input.

PDU-G101A Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -30°C~85°C
Packaging: Tray
Spectral Range: 200nm ~ 365nm
Response Time: 10ns
Viewing Angle: 61°
Responsivity @ nm: 0.1 A/W @ 350nm

PDU-G101A Applications

There are a lot of Advanced Photonix
PDU-G101A Photodiodes applications.

Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
