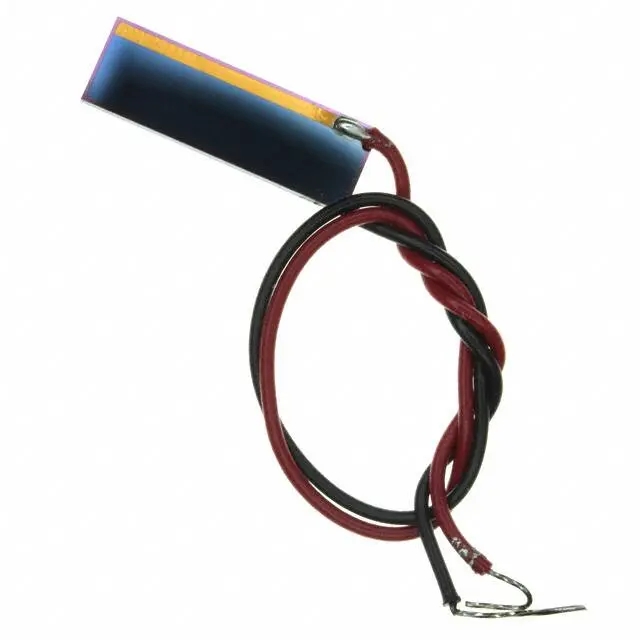

Advanced Photonix PDB-V617-2

Manufacturer No:

PDB-V617-2

Manufacturer:

Advanced Photonix

Package:

Chip with 30 Gauge PVC Wire

Description:

Free Hanging -40°C~100°C Bulk Wavelength: 940nm Chip with 30 Gauge PVC Wire 25V 62.91mm2 35nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-V617-2 information

Advanced Photonix PDB-V617-2 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-V617-2.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Free Hanging

Package / Case
Chip with 30 Gauge PVC Wire

Operating Temperature
-40°C~100°C

Packaging
Bulk

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Voltage - DC Reverse (Vr) (Max)
25V

Breakdown Voltage
15V

Rise Time
2.5?s

Max Reverse Voltage (DC)
25V

Wavelength
940nm

Dark Current
35nA

Spectral Range
350nm ~ 1100nm

Active Area
62.91mm2

Color - Enhanced
Red

Height
5.08mm

Length
15.2mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Advanced Photonix PDB-V617-2.

Datasheets:

advancedphotonix-pdbv6172-datasheets-5774.pdf

PDB-V617-2 Overview

Photodiodes are enclosed in Bulk to prevent damage. Photodiodes are packaged in Chip with 30 Gauge PVC Wire packages in order to ensure their safety. Continuous reverse-bias means the photodiodes can withstand only 25V voltage. When reverse-biased, the photodiodes should not continually exceed 25V. You need a breakdown voltage of 15V to make sure photodiodes work. There is 35nA current flowing through a photodiode even in the absence of light input.

PDB-V617-2 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Spectral Range: 350nm ~ 1100nm

PDB-V617-2 Applications

There are a lot of Advanced Photonix
PDB-V617-2 Photodiodes applications.

Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
