Advanced Photonix PDB-V609-3
Advanced Photonix PDB-V609-3

Advanced Photonix PDB-V609-3

Manufacturer No:

PDB-V609-3

Manufacturer:

Advanced Photonix

Package:

Chip with 34 Gauge BUSS Wire

Description:

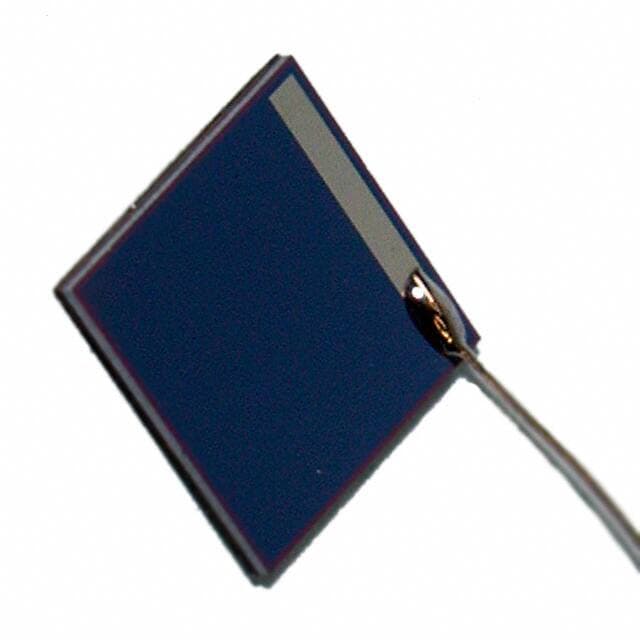

Free Hanging -40°C~100°C Tray Wavelength: 940nm Chip with 34 Gauge BUSS Wire 25V 42.4mm2 1.5?s 50nA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-V609-3 information

Advanced Photonix PDB-V609-3 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-V609-3.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Free Hanging
  • Mounting Type
  • Free Hanging
  • Package / Case
  • Chip with 34 Gauge BUSS Wire
  • Operating Temperature
  • -40°C~100°C
  • Packaging
  • Tray
  • Published
  • 2006
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 100°C
  • Min Operating Temperature
  • -40°C
  • Response Time
  • 1.5?s
  • Voltage - DC Reverse (Vr) (Max)
  • 25V
  • Rise Time
  • 1.5?s
  • Max Reverse Voltage (DC)
  • 25V
  • Wavelength
  • 940nm
  • Dark Current
  • 50nA
  • Spectral Range
  • 350nm ~ 1100nm
  • Active Area
  • 42.4mm2
  • Current - Dark (Typ)
  • 50nA
  • Color - Enhanced
  • Red
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-V609-3.

Datasheets:

PDB-V609-3 Overview


As a protective measure, these photodiodes are packaged in the Tray. To ensure safety, the photodiodes are packaged in Chip with 34 Gauge BUSS Wire packages. Reverse-bias photodiodes can withstand a maximum of 25V in continuous reverse-bias mode. Photodiodes in reverse-bias mode should not continuously exceed 25V. In order for photodiodes to operate, the temperature should not exceed 100°C. It should be noted that the photodiodes should be operated at -40°C as a minimum operating temperature. It is possible for a photodiode to produce 50nA even without light input.

PDB-V609-3 Features


Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Tray
Mount: Free Hanging
Spectral Range: 350nm ~ 1100nm
Response Time: 1.5?s


PDB-V609-3 Applications


There are a lot of Advanced Photonix
PDB-V609-3 Photodiodes applications.


  • Infrared data transmission
  • Photo interrupters
  • Shaft encoders
  • Electronic Equipment
  • Industrial Automation
  • Machine Controls
  • Light Barriers
  • Vision Controls
  • Measurement Levelling
  • High speed photo detectors
