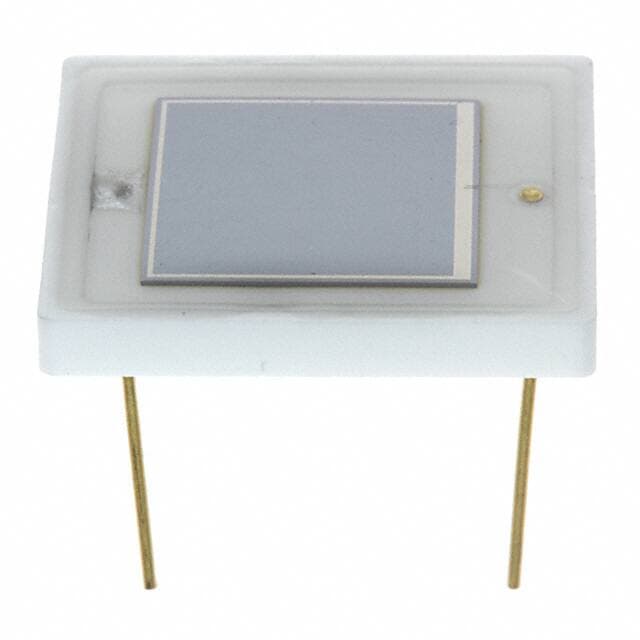

Advanced Photonix PDB-V110

Manufacturer No:

PDB-V110

Manufacturer:

Advanced Photonix

Package:

Radial

Description:

Through Hole -40°C~60°C Bulk Wavelength: 950nm Radial 75V 93.54mm2 13ns 200pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-V110 information

Advanced Photonix PDB-V110 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-V110.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
Radial

Housing Material
Ceramic

Operating Temperature
-40°C~60°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
60°C

Min Operating Temperature
-40°C

Lead Length
12.7mm

Diode Type
PIN

Viewing Angle
120°

Response Time
13ns

Voltage - DC Reverse (Vr) (Max)
75V

Breakdown Voltage
30V

Rise Time
2?s

Max Reverse Voltage (DC)
75V

Wavelength
950nm

Dark Current
200pA

Spectral Range
350nm ~ 1100nm

Active Area
93.54mm2

Current - Dark (Typ)
200pA

Responsivity @ nm
0.17 A/W @ 450nm

Height
2.03mm

Length
16.5mm

Width
15mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-V110.

Datasheets:

advancedphotonix-pdbv110-datasheets-5943.pdf

PDB-V110 Overview

In order to protect these photodiodes from damage, they are packaged in the Bulk. It is necessary to place the photodiodes into Radial packages in order to protect them from damage. A continuous reverse-bias mode can only sustain 75V voltage per photodiode. Continuously reverse-bias the photodiodes shouldn't exceed 75V. In order for photodiodes to function, the temperature must not exceed 60°C. However, the minimum operating temperature of the photodiodes should be set to -40°C. For photodiodes to work, breakdown voltage should be 30V. Without light, a photodiode has 200pA current.

PDB-V110 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~60°C
Packaging: Bulk
Diode Type: PIN
Spectral Range: 350nm ~ 1100nm
Response Time: 13ns
Viewing Angle: 120°
Responsivity @ nm: 0.17 A/W @ 450nm

PDB-V110 Applications

There are a lot of Advanced Photonix
PDB-V110 Photodiodes applications.

Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
