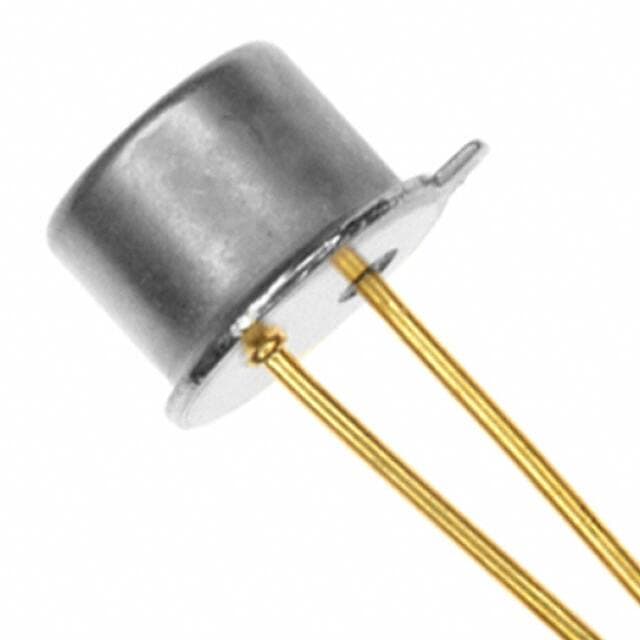

Advanced Photonix PDB-V104

Manufacturer No:

PDB-V104

Manufacturer:

Advanced Photonix

Package:

TO-46-2 Metal Can

Description:

Through Hole -40°C~125°C Bulk Wavelength: 950nm TO-46-2 Metal Can 75V 3.09mm2 150pA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-V104 information

Advanced Photonix PDB-V104 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-V104.

Type
Parameter

Factory Lead Time
14 Weeks

Mounting Type
Through Hole

Package / Case
TO-46-2 Metal Can

Operating Temperature
-40°C~125°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Diode Type
PIN

Viewing Angle
65°

Voltage - DC Reverse (Vr) (Max)
75V

Rise Time
13ns

Max Reverse Voltage (DC)
75V

Wavelength
950nm

Dark Current
150pA

Spectral Range
350nm ~ 1100nm

Active Area
3.09mm2

Color - Enhanced
Blue

Responsivity @ nm
0.17 A/W @ 450nm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-V104.

Datasheets:

advancedphotonix-pdbv104-datasheets-5834.pdf

PDB-V104 Overview

To protect these photodiodes from damage, the Bulk is used. It is necessary to enclose the photodiodes in TO-46-2 Metal Can packages for safety purposes. Continuously reverse-biasing photodiodes can withstand 75V voltage. It is recommended to set the reverse-bias mode for the photodiodes to not exceed 75V on a continuous basis. A photodiode is capable of conducting 150pA current even without light input.

PDB-V104 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~125°C
Packaging: Bulk
Diode Type: PIN
Spectral Range: 350nm ~ 1100nm
Viewing Angle: 65°
Responsivity @ nm: 0.17 A/W @ 450nm

PDB-V104 Applications

There are a lot of Advanced Photonix
PDB-V104 Photodiodes applications.

High speed photo detector
Infrared remote control
Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
