Advanced Photonix PDB-C612-2

Manufacturer No:

PDB-C612-2

Manufacturer:

Advanced Photonix

Package:

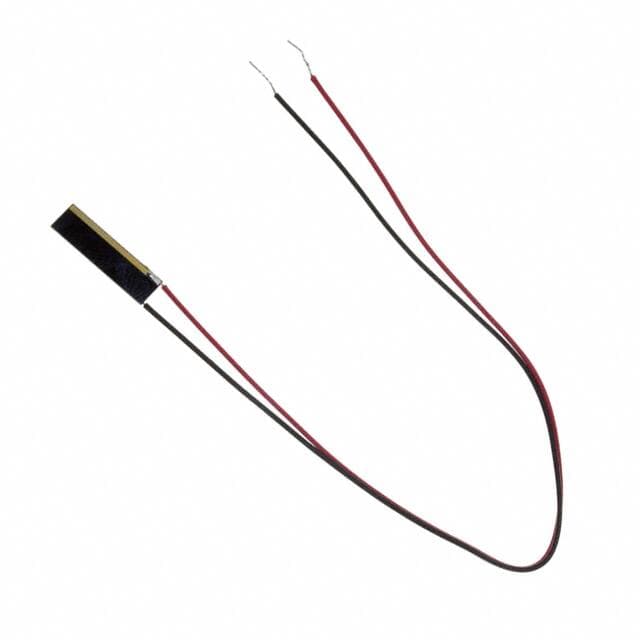

Chip with 30 Gauge PVC Wire

Description:

Free Hanging -40°C~100°C Bulk Wavelength: 950nm Chip with 30 Gauge PVC Wire 75V 68.7mm2 45ns 75nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C612-2 information

Advanced Photonix PDB-C612-2 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C612-2.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Free Hanging

Mounting Type
Free Hanging

Package / Case
Chip with 30 Gauge PVC Wire

Operating Temperature
-40°C~100°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
100°C

Min Operating Temperature
-40°C

Lead Length
159mm

Response Time
45ns

Voltage - DC Reverse (Vr) (Max)
75V

Breakdown Voltage
50V

Rise Time
45ns

Max Reverse Voltage (DC)
75V

Wavelength
950nm

Dark Current
75nA

Spectral Range
350nm ~ 1100nm

Active Area
68.7mm2

Current - Dark (Typ)
75nA

Color - Enhanced
Red

Height
410?m

Width
5.08mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C612-2.

Datasheets:

advancedphotonix-pdbc6122-datasheets-1208.pdf

advancedphotonix-pdbc6122-datasheets-5722.pdf

PDB-C612-2 Overview

Bulk is used to protect the photodiodes from damage. A safety package containing the photodiodes is provided for their protection. When photodiodes are continuously reverse-biased, the maximum voltage they can withstand is 75V. When the photodiodes are reverse-biased, the voltage should never exceed 75V. When photodiodes operate, they should not be subjected to temperatures higher than 100°C. It should be noted that the photodiodes should be operated at -40°C as a minimum operating temperature. It's best to have the breakdown voltage at 50V to make sure the photodiodes work. The current in a photodiode is 75nA even when there is no light input.

PDB-C612-2 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Mount: Free Hanging
Spectral Range: 350nm ~ 1100nm
Response Time: 45ns

PDB-C612-2 Applications

There are a lot of Advanced Photonix
PDB-C612-2 Photodiodes applications.

Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
