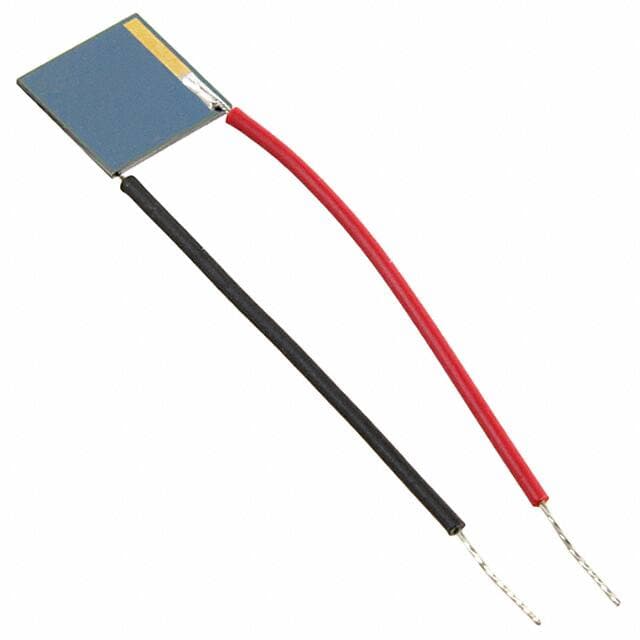

Advanced Photonix PDB-C609-2

Manufacturer No:

PDB-C609-2

Manufacturer:

Advanced Photonix

Package:

Chip with 30 Gauge PVC Wire

Description:

Free Hanging -40°C~100°C Bulk Wavelength: 950nm Chip with 30 Gauge PVC Wire 75V 42.4mm2 30ns 30nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C609-2 information

Advanced Photonix PDB-C609-2 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C609-2.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Free Hanging

Mounting Type
Free Hanging

Package / Case
Chip with 30 Gauge PVC Wire

Operating Temperature
-40°C~100°C

Packaging
Bulk

Published
2006

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
100°C

Min Operating Temperature
-40°C

Lead Length
31.8mm

Response Time
30ns

Voltage - DC Reverse (Vr) (Max)
75V

Breakdown Voltage
50V

Rise Time
30ns

Max Reverse Voltage (DC)
75V

Wavelength
950nm

Dark Current
30nA

Spectral Range
350nm ~ 1100nm

Active Area
42.4mm2

Current - Dark (Typ)
30nA

Color - Enhanced
Red

Height
410?m

Width
7.21mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C609-2.

Datasheets:

advancedphotonix-pdbc6092-datasheets-5113.pdf

PDB-C609-2 Overview

The Bulk protects these photodiodes from damage. In order to ensure safety, the photodiodes are packaged in Chip with 30 Gauge PVC Wire packages. The maximum voltage the photodiodes can withstand in reverse-bias mode is 75V. A continuous reverse-bias voltage of 75V should be maintained for the photodiodes. Photodiode operation should take place at temperatures below 100°C. There should, however, be a minimum operating temperature of -40°C for the photodiodes. Photodiodes need a breakdown voltage of 50V. Despite the absence of light, photodiodes make 30nA current.

PDB-C609-2 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Mount: Free Hanging
Spectral Range: 350nm ~ 1100nm
Response Time: 30ns

PDB-C609-2 Applications

There are a lot of Advanced Photonix
PDB-C609-2 Photodiodes applications.

Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
