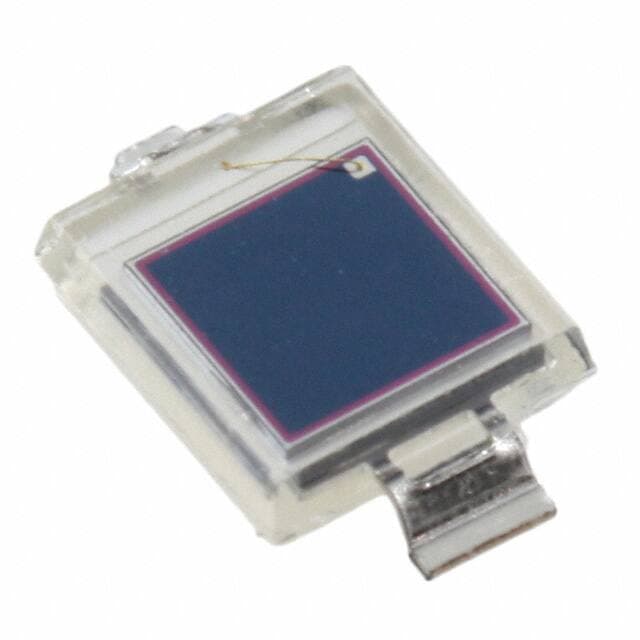

Advanced Photonix PDB-C160SM
Advanced Photonix PDB-C160SM

Advanced Photonix PDB-C160SM

Manufacturer No:

PDB-C160SM

Manufacturer:

Advanced Photonix

Package:

2-SMD, Gull Wing

Description:

Surface Mount -40°C~100°C Cut Tape (CT) Wavelength: 850nm 2-SMD, Gull Wing 32V 7.02mm2 2nA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C160SM information

Advanced Photonix PDB-C160SM technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C160SM.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 2-SMD, Gull Wing
  • Operating Temperature
  • -40°C~100°C
  • Packaging
  • Cut Tape (CT)
  • Published
  • 2010
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 4 (72 Hours)
  • Diode Type
  • PIN
  • Viewing Angle
  • 120°
  • Voltage - DC Reverse (Vr) (Max)
  • 32V
  • Rise Time
  • 20ns
  • Max Reverse Voltage (DC)
  • 32V
  • Wavelength
  • 850nm
  • Dark Current
  • 2nA
  • Spectral Range
  • 400nm ~ 1100nm
  • Active Area
  • 7.02mm2
  • Color - Enhanced
  • Red
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C160SM.

Datasheets:

PDB-C160SM Overview


Photodiodes are enclosed in Cut Tape (CT) to prevent damage. Photodiodes are packaged in 2-SMD, Gull Wing packages in order to ensure their safety. Continuous reverse-bias means the photodiodes can withstand only 32V voltage. When reverse-biased, the photodiodes should not continually exceed 32V. There is 2nA current flowing through a photodiode even in the absence of light input.

PDB-C160SM Features


Moisture Sensitivity Level (MSL): 4 (72 Hours)
Operating Temperature: -40°C~100°C
Packaging: Cut Tape (CT)
Diode Type: PIN
Mount: Surface Mount
Spectral Range: 400nm ~ 1100nm
Viewing Angle: 120°


PDB-C160SM Applications


There are a lot of Advanced Photonix
PDB-C160SM Photodiodes applications.


  • Machine Controls
  • Light Barriers
  • Vision Controls
  • Measurement Levelling
  • High speed photo detectors
  • Health Monitoring
  • Heart Rate Monitoring
  • Pulse Oximetry
  • Pure UV-C Monitoring
  • Sterilization Lamp Monitoring
