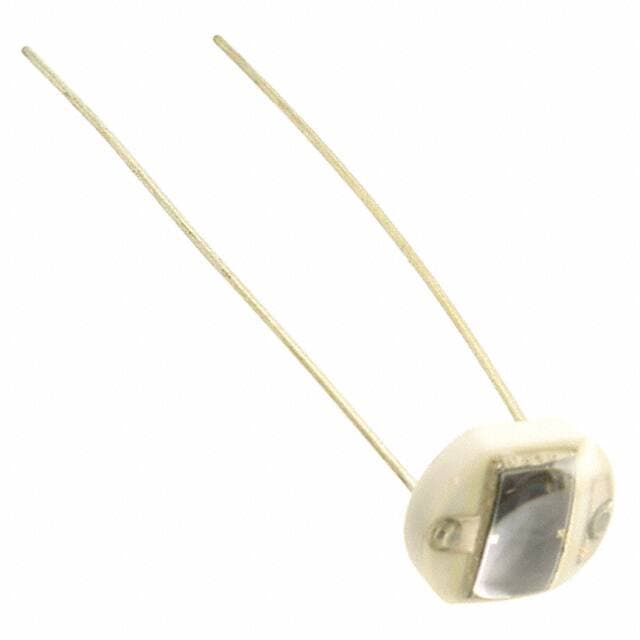

Advanced Photonix PDB-C107

Manufacturer No:

PDB-C107

Manufacturer:

Advanced Photonix

Package:

Radial

Description:

Through Hole -40°C~100°C Bulk Wavelength: 950nm Radial 100V 17.92mm2 13ns 150nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PDB-C107 information

Advanced Photonix PDB-C107 technical specifications, attributes, parameters and parts with similar specifications to Advanced Photonix PDB-C107.

Type
Parameter

Factory Lead Time
14 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial

Housing Material
Ceramic

Operating Temperature
-40°C~100°C

Packaging
Bulk

Published
2005

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
100°C

Min Operating Temperature
-40°C

Diode Type
PIN

Viewing Angle
120°

Response Time
13ns

Voltage - DC Reverse (Vr) (Max)
100V

Breakdown Voltage
100V

Rise Time
13ns

Max Reverse Voltage (DC)
100V

Wavelength
950nm

Dark Current
150nA

Spectral Range
350nm ~ 1100nm

Active Area
17.92mm2

Current - Dark (Typ)
150nA

Responsivity @ nm
0.17 A/W @ 450nm

Diameter
9.19mm

Height
2.92mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Advanced Photonix PDB-C107.

Datasheets:

advancedphotonix-pdbc107-datasheets-2709.pdf

PDB-C107 Overview

The Bulk protects these photodiodes from damage. In order to ensure safety, the photodiodes are packaged in Radial packages. The maximum voltage the photodiodes can withstand in reverse-bias mode is 100V. A continuous reverse-bias voltage of 100V should be maintained for the photodiodes. Photodiode operation should take place at temperatures below 100°C. There should, however, be a minimum operating temperature of -40°C for the photodiodes. Photodiodes need a breakdown voltage of 100V. Despite the absence of light, photodiodes make 150nA current.

PDB-C107 Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 350nm ~ 1100nm
Response Time: 13ns
Viewing Angle: 120°
Responsivity @ nm: 0.17 A/W @ 450nm

PDB-C107 Applications

There are a lot of Advanced Photonix
PDB-C107 Photodiodes applications.

Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
