Microchip PD70200ILD-TR
Microchip PD70200ILD-TR

Microchip PD70200ILD-TR

Manufacturer No:

PD70200ILD-TR

Manufacturer:

Microchip

Package:

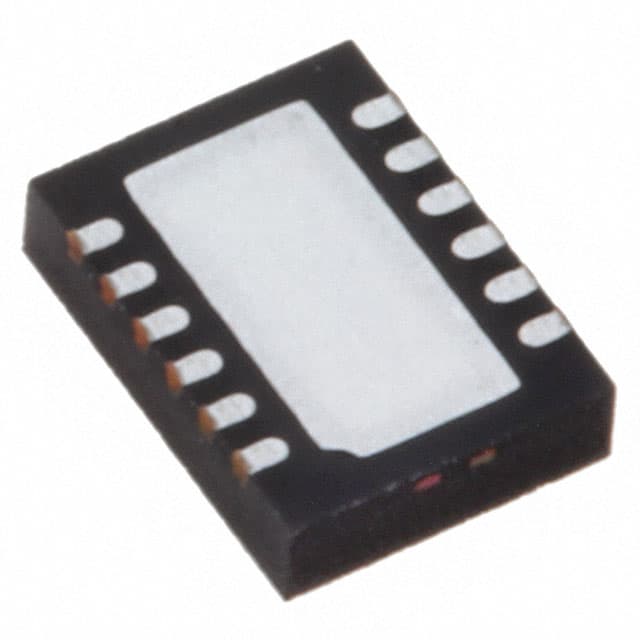

12-VFDFN Exposed Pad

Description:

PD70200

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PD70200ILD-TR information

Microchip PD70200ILD-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip PD70200ILD-TR.

  • Type
  • Parameter
  • Product Type
  • PD IC
  • Standards Supported
  • IEEE 802.3af, IEEE 802.3at, dual-IEEE 802.3at
  • IC Type
  • PD front end
  • POE Type
  • AT Type 2
  • PoE Class
  • 1-4
  • Output Power
  • 47W
  • Maximum Current
  • 1.2A
  • Maximum Channel Resistance
  • 0.6 Ohm
  • Operating Temperature (C)
  • –40 to 85
  • Temperature Grade
  • Industrial
  • Integrated PWM Controller
  • No

Download datasheets and manufacturer documentation for Microchip PD70200ILD-TR.

Application Notes:

Data Sheets:

The PD70200 device is a part of Microchip’s series of Power over Ethernet (PoE) Powered Devices (PDs). The device transmits integrated power and analog data in a single 12-pin package. It is used in PDs, thus enabling next generation network devices to share power and data over the same cable. Microchip’s new PD family offers a solution to any PD application compliant with IEEE 802.3af and IEEE 802.3at standards and 4-pairs extra power applications. The IC family’s components can be used in both indoor and outdoor applications. The device family meets all PD-side-standards such as:

  • Detection classification
  • Integrated isolation switch with inrush current limiter, and over-current protection
  • Two-events classification recognition and AT flag generation

In addition, the devices have a discharge mechanism for a DC / DC input capacitor, ensuring quick redetection capability in case the RJ-45 plug is disconnected and reconnected within a short time span. The PD70200 IC design specifically supports IEEE 802.3at Type 2 standard, including two events classification detection that enables the PD to distinguish whether the connected power source equipment (PSE) is IEEE 802.3at or IEEE 802.3af based. The PD70200 IC is designed to support 4 pair applications for PDs that require higher power.

Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.



  • Designed to support IEEE 802.3at Type 2 standard
  • PD detection & programmable classification signature
  • Two-events classification flag
  • Signature resistor disconnection after detection
  • Integrated 0.6O isolating switch and inrush current limiter
  • 4-pairs support with a single PD70200 IC for up to 48W
  • 4-pairs support with two PD70200 ICs for up to 96W
  • Less than 10 µA offset current during detection
  • Single DC voltage input (37V – 57V)
  • Wide operating temperature range: -40°C to 85°C
  • On-chip thermal protection
  • 12-pin 3mm × 4mm package
  • MSL3, RoHS compliant
