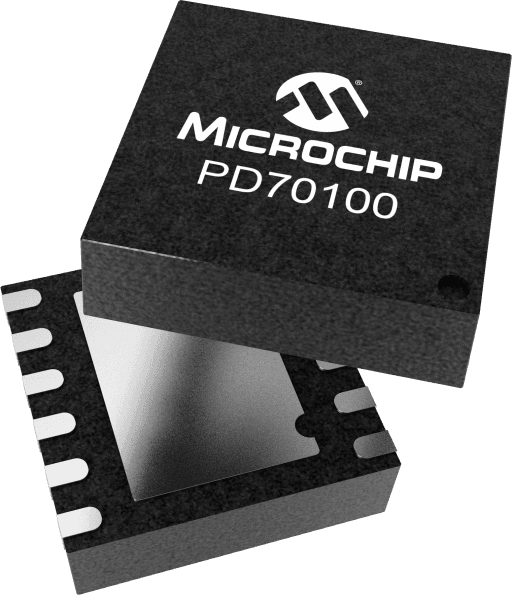

Microchip PD70100ILD-TR
Microchip PD70100ILD-TR

Microchip PD70100ILD-TR

Manufacturer No:

PD70100ILD-TR

Manufacturer:

Microchip

Package:

12-VFDFN Exposed Pad

Description:

PoE PD IC

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step1：Prepare product

Step2：Desiccant Protection

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step3：Vacuum Packaging

Step4：Individual Package

Step4：Individual Package

Step5：Anti-collision Filling

Step5：Anti-collision Filling

Step6：Packaging Box

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

PD70100ILD-TR Information

Microchip PD70100ILD-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip PD70100ILD-TR.

  • Type
  • Parameter
  • Product Type
  • PD IC
  • Standards Supported
  • IEEE 802.3af
  • IC Type
  • PD front end
  • POE Type
  • AF Type 1
  • PoE Class
  • 1-3
  • Output Power
  • 15.4W
  • Maximum Current
  • 0.45A
  • Maximum Channel Resistance
  • 0.6 Ohm
  • Operating Temperature (C)
  • –40 to 85
  • Temperature Grade
  • Industrial
  • Type
  • Parameter
  • Integrated PWM Controller
  • No

Download datasheets and manufacturer documentation for Microchip PD70100ILD-TR.

Application Notes:

Data Sheets:

The PD70100 device is a part of Microchip’s series of Power over Ethernet (PoE) Powered Devices (PDs). The device transmits integrated power and analog data in a single 12-pin package. It is used in PDs, thus enabling next generation network devices to share power and data over the same cable. Microchip’s PD70100 is optimized for PD applications compliant with IEEE 802.3af Type 1 standards. The IC family’s components can be used in both indoor and outdoor applications.

The device family meets all PD-side-standards such as:

• Detection

• Classification

• Integrated isolation switch with inrush current limiter, and over-current protection

In addition, the devices have a discharge mechanism for a DC / DC input capacitor, ensuring quick re-detection capability in case the RJ-45 plug is disconnected and reconnected within a short time span.

Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.



  • Designed to support IEEE 802.3af Type 1 applications
  • PD detection & programmable classification signature
  • Signature resistor disconnection after detection
  • Integrated 0.6O isolating switch and inrush current limiter
  • Less than 10 µA offset current during detection
  • Single DC Voltage Input (37V – 57V)
  • Wide operating temperature range: -40°C to 85°C
  • On-chip thermal protection
  • 12-pin, 3 × 4mm DFN
  • MSL3, RoHS compliant
