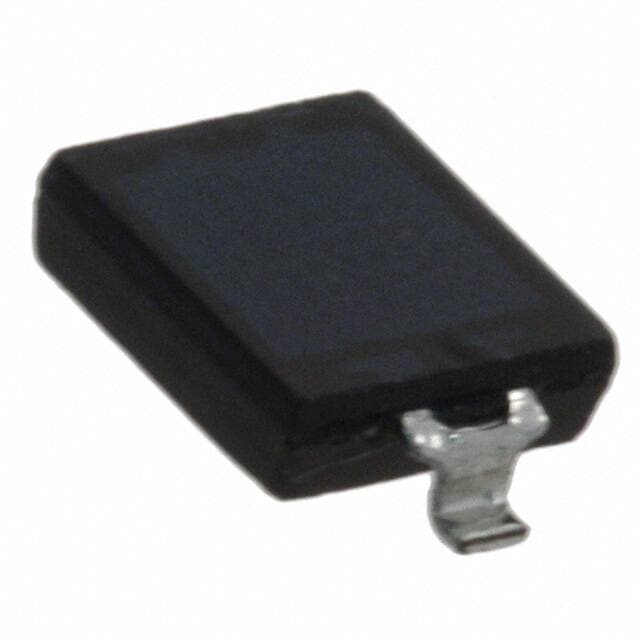

EVERLIGHT PD70-01B/TR10

Manufacturer No:

PD70-01B/TR10

Manufacturer:

EVERLIGHT

Package:

2-SMD, Z-Bend

Description:

Surface Mount -25°C~85°C Tape & Reel (TR) Wavelength: 940nm 2-SMD, Z-Bend 5nA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PD70-01B/TR10 information

EVERLIGHT PD70-01B/TR10 technical specifications, attributes, parameters and parts with similar specifications to EVERLIGHT PD70-01B/TR10.

Type
Parameter

Factory Lead Time
15 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
2-SMD, Z-Bend

Number of Pins
2

Shape
RECTANGULAR

Semiconductor Material
Silicon

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Published
2012

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Additional Feature
DAYLIGHT FILTER

HTS Code
8541.40.60.50

Subcategory
Photo Diodes

Max Power Dissipation
150mW

Number of Functions
1

Configuration
SINGLE

Diode Type
PIN

Power Dissipation
150mW

Size
4.4mm

Rise Time
50ns

Fall Time (Typ)
50 ns

Reverse Breakdown Voltage
32V

Wavelength
940nm

Reverse Voltage (DC)
32V

Dark Current
5nA

Spectral Range
730nm ~ 1100nm

Infrared Range
YES

Light Current-Nom
0.035mA

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for EVERLIGHT PD70-01B/TR10.

PD70-01B/TR10 Overview

These photodiodes are packaged in the Tape & Reel (TR) to protect them from damage. The photodiodes are put into 2-SMD, Z-Bend packages for safety protection. The voltage for the photodiodes should not exceed 32V in reverse-bias mode on a continual basis. The photodiodes have 2 pins. The photodiodes could release 150mW heat within a circuit. The reverse anode voltage for the photodiodes should be 32V. In general, the maximum heat released by the photodiodes should be 150mW in a circuit. In the DC circuit, the photodiodes can work properly with the reverse voltage of 32V. Even in the absence of light input, a photodiode occurs 5nA current.

PD70-01B/TR10 Features

Moisture Sensitivity Level (MSL): 3 (168 Hours)
Operating Temperature: -25°C~85°C
Packaging: Tape & Reel (TR)
Diode Type: PIN
Mount: Surface Mount
Spectral Range: 730nm ~ 1100nm

PD70-01B/TR10 Applications

There are a lot of Everlight Electronics Co Ltd
PD70-01B/TR10 Photodiodes applications.

High speed photo detector
Infrared remote control
Infrared data transmission
Photo interrupters
Shaft encoders
Electronic Equipment
Industrial Automation
Machine Controls
Light Barriers
Vision Controls
