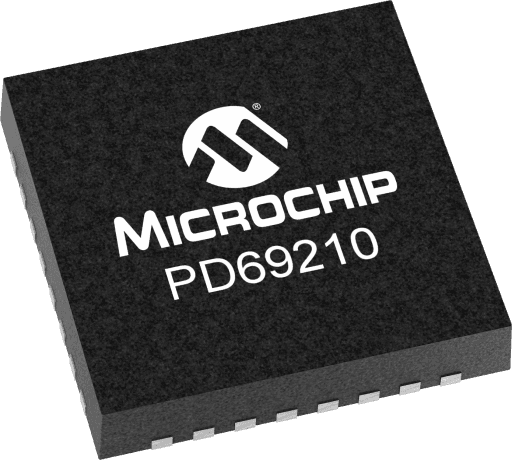

Microchip PD69210R-035200-TR

Manufacturer No:

PD69210R-035200-TR

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad

Description:

PoE controller

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PD69210R-035200-TR information

Microchip PD69210R-035200-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip PD69210R-035200-TR.

Type
Parameter

Product Type
PoE Controller

Standards Supported
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UPoE, PoH

Ports
48

2-Pair Power
NA

4-Pair Power
NA

Maximum Current
NA

PoE Class (0-8)
NA

PoE Type (1-4)
NA

FETs
NA

Sense Resistor
NA

Operating Temperature
–40 to 85

PoE Controller
NA

Host Interface
I²C UART

Temperature Grade
Industrial

Download datasheets and manufacturer documentation for Microchip PD69210R-035200-TR.

Data Sheets:

ccc6503c6f0b054e8d8069f5b33d7b5e.pdf

Application Notes:

8f10c91b8c0bd9b518c5646f4a63bc10.pdf

7b6e301ba6f416b62dc19f30bf1da8ba.pdf

3c5b4ae85f2a74131738e43ee58ce8dd.pdf

c38e2cb3d86d8e0f17ecbf4b406e1aeb.pdf

PD69210 is a Microchip-based cost-effective, pre-programmed MCU designed to implement Enhanced mode PoE control in conjunction with the PD69208M, PD69208T4 and PD69204T4 PSE Managers.
The PD69210 features an ESPI bus connection up to 12 PSE Managers.
PD69210 features an ESPI bus interface up to 12 PoE managers. PD692x0 has an embedded ARM Cortex™-M0+ core. It also uses I2C or UART interface to the host CPU and is designed to support software field upgradable through the communication interface.
The PD69210 utilizes I2C or UART interface to the host CPU.
PD69210 is available in 32 pin, 5 mm x 5 mm QFN package.

Please click here for the PoE Software Library.

Supports IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UPoE and PoH standards
Number of ports: 48 logical ports (4-pair or 2-pair or any combination)
Temperature range: –40°C to 85°C
Temperature grade: industrial
