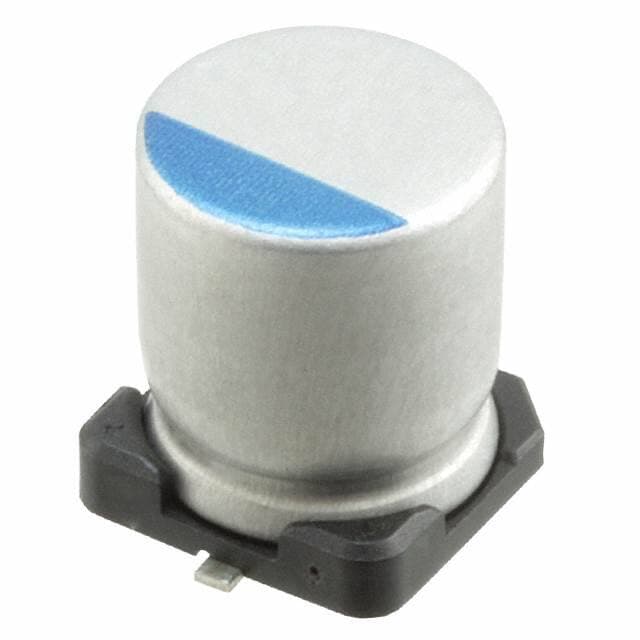

NICHICON PCV1D151MCL6GS
Manufacturer No:
PCV1D151MCL6GS
Manufacturer:
Package:
Radial, Can - SMD
Description:
150?F ±20% Radial, Can - SMD 0.394 10.00mm Tape & Reel (TR) 28mOhm PCV Surface Mount Polymer General Purpose
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PCV1D151MCL6GS information
NICHICON PCV1D151MCL6GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON PCV1D151MCL6GS.
- Type
- Parameter
- Factory Lead Time
- 17 Weeks
- Mount
- PCB, Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- Radial, Can - SMD
- Terminal Shape
- FLAT
- Number of Pins
- 2
- Surface Mount Land Size
- 0.327Lx0.327W 8.30mmx8.30mm
- Operating Temperature
- -55°C~105°C
- Packaging
- Tape & Reel (TR)
- Series
- PCV
- Published
- 2009
- Size / Dimension
- 0.315Dia 8.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- SMD/SMT
- ECCN Code
- EAR99
- Type
- Polymer
- Terminal Finish
- Tin (Sn)
- Applications
- General Purpose
- Capacitance
- 150?F
- ESR (Equivalent Series Resistance)
- 28mOhm
- Polarity
- POLARIZED
- Size Code
- 3333
- Lifetime @ Temp
- 3000 Hrs @ 105°C
- Leakage Current
- 0.6mA
- Ripple Current
- 2A
- Life (Hours)
- 3000 hours
- Ripple Current @ High Frequency
- 2A @ 100kHz
- Diameter
- 8mm
- Height
- 10mm
- Height Seated (Max)
- 0.394 10.00mm
- Length
- 9mm
- Width
- 8.3mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON PCV1D151MCL6GS.
Datasheets:
PCV1D151MCL6GS Overview
Systems need 2A @ 100kHz ripple current at high frequency to be powered.In this electrical device, the ESR (Equivalent Series Resistance) is 28mOhm.In place is a comp2nt with a pin number of 2.An operating temperature of -55°C~105°C is recommended for stable operation.
PCV1D151MCL6GS Features
2A @ 100kHz ripple current on a high frequency
a 28mOhm in ESR (Equivalent Series Resistance) in this electrical device
an operating temperature of -55°C~105°C
PCV1D151MCL6GS Applications
There are a lot of Nichicon
PCV1D151MCL6GS applications of aluminum polymer capacitors.
- LED driver power supplies
- Phone chargers
- Motherboards
- Servers and adapters (laptop power supplies)
- Medical equipment
- Switching Power Supply and DC/DC Converter.
- Buck up Power Supplies of CPU(VRM etc.)
- Miniature high Power Supply.
