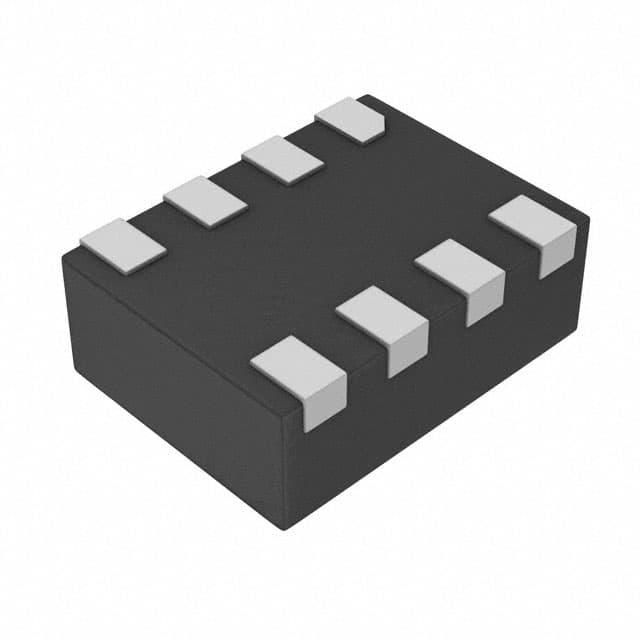

ONSEMI PCS3P7303AG-08CR
Manufacturer No:
PCS3P7303AG-08CR
Manufacturer:
Package:
8-WDFN
Description:
3.3V 80MHz PCS3P7303A Clock Generators 8 Pins 8-WDFN 8 Terminals Surface Mount 2.3V~3.6V Tape & Reel (TR)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
PCS3P7303AG-08CR information
ONSEMI PCS3P7303AG-08CR technical specifications, attributes, parameters and parts with similar specifications to ONSEMI PCS3P7303AG-08CR.
- Type
- Parameter
- Lifecycle Status
- LIFETIME (Last Updated: 3 days ago)
- Factory Lead Time
- 25 Weeks
- Contact Plating
- Gold
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 8-WDFN
- Number of Pins
- 8
- Weight
- 37.393021mg
- Operating Temperature
- -25°C~85°C
- Packaging
- Tape & Reel (TR)
- Published
- 2002
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Last Time Buy
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- ECCN Code
- EAR99
- Additional Feature
- ALSO OPERATES WITH 2.5V SUPPLY
- Technology
- CMOS
- Voltage - Supply
- 2.3V~3.6V
- Terminal Position
- DUAL
- Supply Voltage
- 3.3V
- Terminal Pitch
- 0.5mm
- Base Part Number
- PCS3P7303A
- Pin Count
- 8
- Operating Supply Voltage
- 2.5V
- Power Supplies
- 2.5/3.3V
- Number of Circuits
- 1
- Operating Supply Current
- 5mA
- Supply Current-Max
- 20mA
- Frequency (Max)
- 80MHz
- Halogen Free
- Halogen Free
- Input
- Clock, Crystal
- Ratio - Input:Output
- 1:1
- Primary Clock/Crystal Frequency-Nom
- 70MHz
- PLL
- Yes
- Differential - Input:Output
- No/No
- Divider/Multiplier
- No/Yes
- Length
- 2mm
- Width
- 2mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ONSEMI PCS3P7303AG-08CR.
PCS3P7303AG-08CR Overview
As a clock IC, PLLs is packaged using the Tape & Reel (TR) method. This clock generator is embedded in the 8-WDFN package. 8 terminations can be found in frequency synthesizer. Basically, a voltage of 3.3V should be applied to this electronic frequency generator. Clock, Crystal is designed as this clock generator's input. 1 circuits are implemented to access the electronic component's full performance. This clock-based frequency generator provides a frequency up to 80MHz Max. This component can be conveniently installed on the panel thanks to the Surface Mount. Clock PLL works with 2.3V~3.6V supply voltage provided. The ambient temperature should be set at -25°C~85°C, which is estimated by the test statistics. This is a clock generator compatible with Clock logic levels. This clock-generating IC is a 8-bit device designed explicitly for microprocessors. According to the base part number PCS3P7303A, its related parts can be found. There is an available 8 pin on the clock generators. RF synthesizers can handle voltages up to 2.5V. For better clock signal output, this clock PLL is featured with ALSO OPERATES WITH 2.5V SUPPLY. A supply current of 5mA needs to be provided to fully play RF synthesizer's function. Excessed supply current (higher than 20mA) may cause thermal destruction of an element.
PCS3P7303AG-08CR Features
Available in the 8-WDFN
Supply voltage of 3.3V
Operating supply voltage of 2.5V
PCS3P7303AG-08CR Applications
There are a lot of ON Semiconductor
PCS3P7303AG-08CR Clock Generators applications.
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
